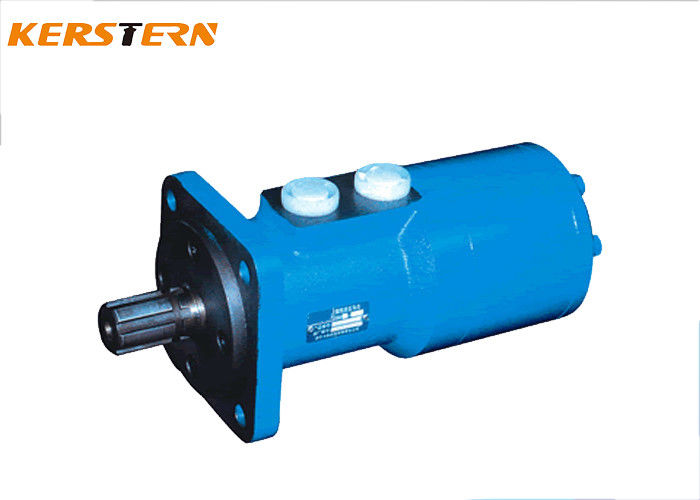

Orbit High Torque Dc Variable Hydraulic Motor 6K KM6 For Machinery

Product Details:
Place of Origin: China
Brand Name: KERSTERN
Certification: ISO9000
Model Number: 6000 KM6
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Packaging Details: Carton or wooden box
Delivery Time: Ten days after you confirm the order
Payment Terms: T/T or L/C
Supply Ability: 1000 pcs per month

Detail Information

Brand: KERSTERN Material: Cast Iron
Original Place: China Model: 6000 KM6
Motor Shafts: Straight, Splined And Tapered Power: Hydraulic Oil
High Light:

Orbit variable hydraulic motor 6K

,

variable hydraulic motor KM6

,

high torque dc motor 775 rpm

Product Description

High Pressure Spool Valve Hydraulic Orbit Motor Eaton 6000 Series KM6 for Machinery



Note:

1.Continuous data:The Max.Value of operating motor continuously.

2.Intermittent Data:The Max.Value of operating motor in 6 seconds per minute.

3.A simultaneous max. RPM and max. Pressure is not recommended.

4.The Conversion Factors is on the page 4, consult it please.

5.Optimum operating situation should be at the 1/3 ~ 2/3 of the continuous operating situation.



Specifications:



Displacement(ml/r) 195 245 310 395 490 625 800 985
Flow(LPM) Cont. 150 150 150 150 150 150 150 150
Int.. 170 210 225 225 225 225 225 225
Speed(RPM) Cont. 775 615 485 383 307 241 184 153
Int.. 866 834 698 563 454 355 276 230
Pressure(Mpa) Cont. 20.5 20.5 20.5 20.5 17 14 12 12
Int.. 31 31 31 31 27.5 17 14 14
Torque(N*m) Cont. 575 735 930 1169 1215 1330 1380 1570
Int.. 860 1180 1335 1655 1885 1380 1650 1875





Descrition:



Compact in design with spool valving and Geroler
Imported high pressure capacity shaft seal
Wide variety of mounting flanges, shafts, ports
and speed provides design flexibility

Direction of shaft rotation and speed can be controlled easily and smoothly
Best combination of efficiency and economy in medium duty applications



Applications: Hydraulic system, engineering machine, industry machine



Competitive Advantage: Good quality, Complete Series, Competitive price and Best service.





packing:
design and construction	Danfoss Orbital Motor final inspection 0

transportation:
design and construction	Danfoss Orbital Motor final inspection 1

FAQ:

1. who are we?
We are based in Jinan, China, start from 2003.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. what can you buy from us?
Hydraulic motor

4. How long is the Warranty?
One-year warranty.

5. What is your payment terms?
Re: 100% in advance, long-term dealer 30% in advance, 70% beofre shipping.

6. How about the delivery time?
Normal Models within 2 days, unusual models and bulk order within 5-10 days.
