63 Ml/R Danfoss Orbital Hydraulic Drive Motors Medium Duty Higher Pressure
63 Ml/R Danfoss Orbital Hydraulic Drive Motors Medium Duty Higher Pressure

63 Ml/R Danfoss Orbital Hydraulic Drive Motors Medium Duty Higher Pressure

Product Details:
Place of Origin: China
Brand Name: KERSTERN
Certification: ISO9001
Model Number: KMER series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1
Packaging Details: Standard Package
Delivery Time: 15 days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 1000 set per month
Contact Now

Detail Information
Material: Cast Iron Place Of Origin: China
Certification: ISO9001 Motor Power: Hydraulic Oil
Processing: Forging&cutting Package: Standard Package
High Light:

Orbital Hydraulic Drive Motor

,

40LPM Hydraulic Drive Motor

,

63 ml/r danfoss orbital motors

Product Description

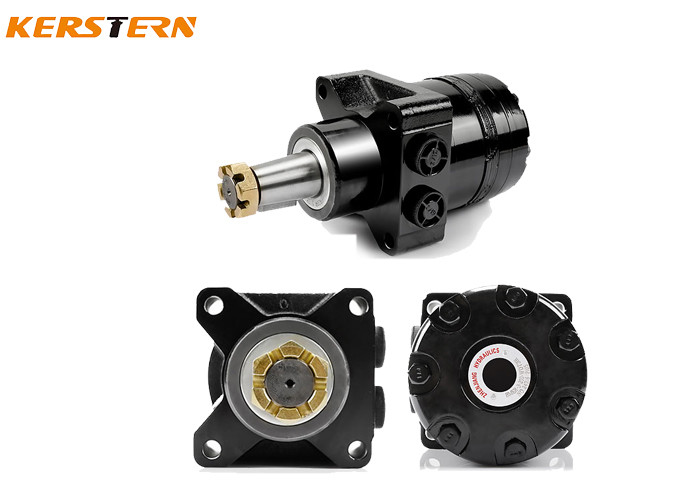

Medium Duty Higher Pressure Hydraulic Drive Motor Orbital Structural Style



KM2 motor



KM2 series motor is a medium, spool valve type motor.can bear higher pressure than BM1.



Characteristic features:

It adapts the gerolor design. Has higher efficiency than BM1 motor.

Credible design for shaft seal , which can bear high pressure, and be used in parallel or in series.

Direction of shaft speed can be controlled easily and smoothly.

Best efficiency and economy in medium load applications.



Main Specification



Displacement 50 63 80 100 125 160 200 250 315 400 500
(ml/r)


Ｆlow   Cont. 40 40 60 60 60 60 60 60 60 60 60

(LPM)   Int.. 50 50 75 75 75 75 75 75 75 75 75


Speed   Cont. 755 630 750 600 475 375 300 240 190 160 110

(RPM)   Int.. 970 790 940 750 600 470 375 300 240 200 128


    Cont. 14 14 17.5 17. 17.5 16.5 13 11 8.5 8.5 8
Pressure   5

(MPa)   Int.. 17.5 17.5 20 20 20 20 17.5 14 11.5 11.5 9


Torque   Cont. 100 124 190 240 292 363 358 352 360 420 464
(N*m)
  Int.. 126 156 220 280 340 430 448 470 470 548 580





Note:

1. Continuous data: The Max. Value of operating motor continuously.



2. Intermittent Data: The Max. Value of operating motor in 6 seconds per minute.



3. A simultaneous max. RPM and max. pressure is not recommended.



4. The Conversion Factors is on the page 4, consult it please



5. The optimum operating situation should be at the 1/3～2/3 of the continuous operating situation.



Packing:
design and construction Danfoss Orbital Motor final inspection 0

Transportation:
design and construction Danfoss Orbital Motor final inspection 1


FAQ:

1. who are we?
We are based in Jinan, China, start from 2003.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Hydraulic motor
4. How long is the Warranty?
One-year warranty.
5. What is your payment terms?
Re: 100% in advance, long-term dealer 30% in advance, 70% beofre shipping.
6. How about the delivery time?
Normal Models within 2 days, unusual models and bulk order within 5-10 days.
