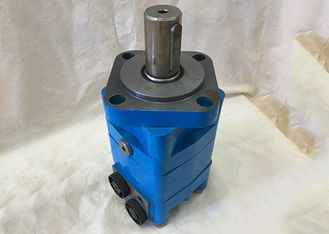

OMS without bearing Eaton Charlynn Hydraulic Orbit Motor For Agricultural Machines

Product Details:
Place of Origin: CHINA
Brand Name: KERSTERN
Certification: ISO 9001
Model Number: Eaton 2000 series
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: USD 1
Packaging Details: Standard package
Delivery Time: 15-20 days after receievd the payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 pcs per month

Detail Information

Product Name: Eaton Series Hydraulic Motor Speed: 144-956 Rpm
Pressure: 12-28 Mpa Torque: 178-860 N*m
Displacement: 80cc-475cc Weight: 10-13kgs
High Light:

80cc Orbit Hydraulic Motor

,

475cc Orbit Hydraulic Motor

,

eaton char lynn hydraulic motor 104-1001-006

Product Description

Straight With splined Key,4-Bolt Flange ,7/8-14 O-ring Ports Eaton 2000 series hydraulic motor without bearing

One type of hydraulic orbital motor,which can replace Danfoss OMS series ,ParkerM+S ,White,Eaton Charlynn etc.



Optimum performance



Eaton Hydraulic Motor 2000 series 104-1001-006 For Agricultural Machines



Offering you some of the best Orbital motors on the market, based on more than 60 years of experience in the field of hydraulics. Danfoss orbital motors have a very high efficiency over the entire lifetime of the product, meaning that you save energy and money.

Our global reach means we can provide customer service and technical support almost anywhere.


Specifications:

Type KM5S KM5S KM5S KM5S KM5S KM5S KM5S KM5S KM5S
80 100 125 160 200 250 315 400 475
Displacement (cm3/rev.) 80.6 100.8 125 154 194 243 311 394 475
Max. speed (rpm) rated 675 540 432 337 270 216 171 135 110
cont. 800 748 600 470 375 300 240 185 155
int. 988 900 720 560 450 360 280 225 185
Max. torque
(N•m)
rated 175 220 273 445 505 620 700 765 780
cont. 225 290 365 485 586 708 880 880 910
int. 250 320 400 540 645 806 960 960 960
Max. output (kW) cont. 16 18 18 18.1 18.1 18 17 11 9
int. 20 22 23 25 24 23.8 20.2 12 11
Max.pressure drop (MPa) cont. 20.5 20.5 20.5 21 21 20 20 16 14
int. 22.5 22.5 22.5 22.5 22.5 22.5 22.5 17.5 15
peak 29.5 29.5 29.5 22.5 22.5 22.5 22.5 20 17.5
Max. flow (L/min) cont. 65 75 75 75 75 75 75 75 75
int. 80 90 90 90 90 90 90 90 90
Max.inlet pressure (MPa) cont. 25 25 25 25 25 25 25 25 25
int. 30 30 30 30 30 30 30 30 30
Weight (kg) 9.8 10 10.3 10.7 11.1 11.6 12.3 13.2 14.3




Packing and shipping :

OEM yes
Lead Time 5-20 working days for less than 1500pcs
Payment L/C,T/T
30% advance payment,the balance paid before shipment
Packing Motor each have their own carton,the outer packing is a five-layer plywood boxes
Shipping 1)By air or sea or combined transportation
2)Express:TNT,FEDEX,UPS,DHL



FAQ:

Q: What is our main application? A: 1.Hydraulic system; 2.Agriculture machine; 3.Constraction machine; 4. Automobile: 5.Local distributors
Q:What is our main products? A: Hydraulic motor B: Hydraulic steering units C: Gear Pump D: Vane pump
Q: What Is The Payment Terms.

A: Full order: 30% as deposit, the balance before shipment;

Small order /sample order: full payment in advance;

Q: Can I Mark My Own Brand On The Pump? A: Yes. Full order could mark your logo and code;
Q: What is our main export market? A: America(45.5%):The United States, Canada, Brazil; Europe(30.8%):Italy,Germany,England,Holland,Spain,Poland. Asia(18.5%):Korea,India,Turkey,Iran, Syria, Israel; Others(5.8%):



Our advantages:

  • Used Germany seal kits which can promise our quality is stable and good
  • Our employees have 20 years experiences in technology
  • Products are superior in quality. Each product should test before shipping
  • Special code we can produce by your drawing or technical specifications
  • Wide products can meet your required
