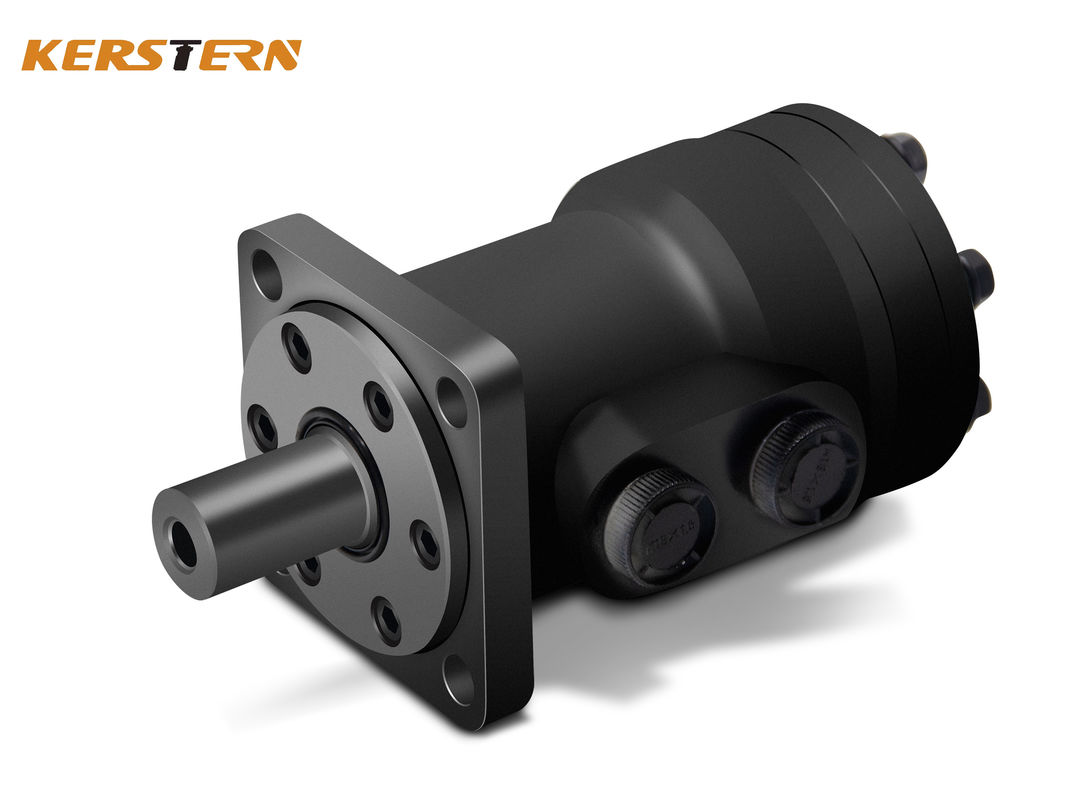

OMP BMP Variable Displacement Motor High Efficiency For Mower

OMP BMP Variable Displacement Motor High Efficiency For Mower

Brand Name:	KERSTERN
Model Number:	OMP BMP KM1
MOQ:	1 set
Price:	USD 1
Delivery Time:	According to order quantity
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Document:

KM1 Series by Keystone Hydr...ic.pdf

Product Name:

Hydraulic Motor

Displacement:

50cc-500cc

Speed:

149-975 Rpm

Pressure:

9-16.5 Mpa

Torque:

81-533 N*m

Warranty:

One Year

Packaging Details:

Standard package

Supply Ability:

1000 set

Highlight:

KM1 variable displacement motor

OMP variable displacement motor

high efficiency motor

Product Description

Hydraulic Motor OMP BMP series displacement 50 151-0340 Hydraulic Spool Valve Used For Mower

OMP series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design improves mechanical efficiency, provide reliable leak-free performance and smooth operation. Especially at start-up and low speed conditions

Specifications :

Type		OMP	OMP	OMP	OMP	OMP	OMP	OMP	OMP	OMP	OMP	OMP
Type		36	50	80	100	125	160	200	250	315	400	500
Displacement		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N•m)	cont.	55	100	146	182	236	302	360	380	375	360	385
	int.	76	128	186	227	290	370	440	460	555	525	560
	peak	96	148	218	264	360	434	540	550	650	680	680
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	5
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	6
Max.pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
	prak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	16	14	12
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight(kg)		5.6	5.6	5.7	5.9	6	6.2	6.4	6.6	6.9	7.4	8
