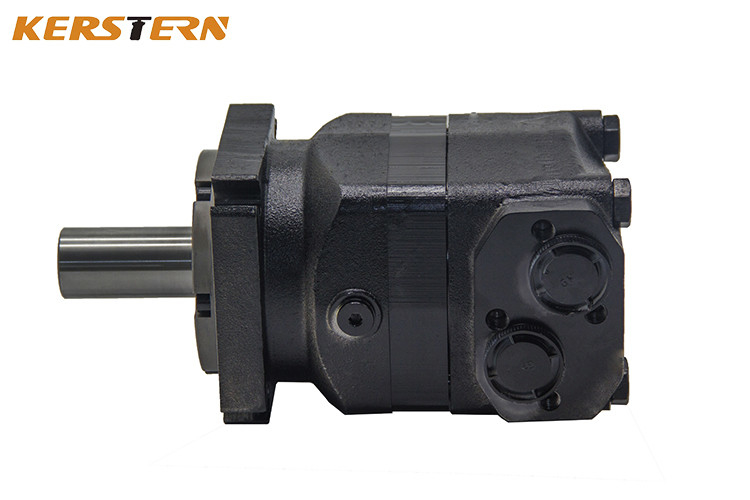

KMT High Torque Hydraulic Pump Orbital Motor Danfoss For Boat Equipment 100cc

Product Details:
Place of Origin: CHINA
Brand Name: KERSTERN
Certification: CE ISO
Model Number: KMT
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard seaworthy export packing or as customer demands
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 10000PCS /Year

Detail Information

Usage: BOAT, Industrial Equipment Commutation: Brush
Application: Automatic Product Motor Type: Orbital Motor
The Sample Service: Samples Are Available Pressure: High Pressure
High Light:

KMT high torque hydraulic pump

,

Danfoss high torque hydraulic pump

,

orbital motor danfoss 100cc

Product Description

design and construction Danfoss Orbital Motor final inspection



Farmers need agricultural machines that deliver the same high productivity every season. Hydraulic solutions from Danfoss ensure world-class performance from each machine, and a comfortable, stress-free working environment for their operators.





Danfoss Orbital Motor
Displacement 80cc,100cc,125cc,160cc,200cc,250cc,315cc,400cc,475cc
Flange: E2: 2-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3
E4: 4-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3
F6: 6-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×2.6
W: 4-Ø13.5 Wheel-flange Ø160 ,pilot Ø125×8
E2B: 2-Ø14.3 Rhomb-flange Ø146.05,pilot Ø101.6×9.4
SP: 4-Ø11.5 Square-flange Ø106.4,pilot Ø82.5×6.3
D: 4-Ø11 Circle-flange Ø125 ,pilot Ø100×6
E: 4-Ø13.5 Square-flange Ø127 ,pilot Ø101.6×6.3
Output Shaft: A: Shaft Ø25 , parallel key 8×7×32
B: Shaft Ø32 , parallel key 10×8×45
D:Shaft Ø25.4 , parallel key6.35×6.35×25.4
G: Shaft Ø31.75 ,parallel key 7.96×7.96×31.75
F: Shaft Ø31.75 ,splined tooth 14-DP12/24
FD: Long Shaft Ø31.75 ,splined tooth 14-DP12/24
SL: shaft Ø34.85,Splined key 6-34.85×28.14×8.64
T1: Cone-shaft Ø35 ,parallel key B6×6×20
T3: Cone-shaftØ31.75 ,parallel key 7.96×7.96×31.75
S1: Shaft Ø25.4 ,splined tooth SAE 6B
I: Sub-shaft Ø22,splined tooth 13-DP16/32
Port and drain port: D: G1/2 Manifold Mount 2-M10 , G1/4
M: M22×1.5 Manifold Mount 2-M10 , M14×1.5
S: 7/8-14UNF O-ring manifold 2-3/8-16 , 7/16-20UNF
P: 1/2-14NPTF manifold 2-3/8-16UNC , 7/16-20UNF



Introduction:
•  Very Compact Package
•  Higher Output Torque
•  Improved Efficiency
•  Durable Design and Construction
•  Quiet and Smooth Operation
•  Shuttle Valve for Reliable Drive Lubrication
•  Rating Compatible with Medium Duty Pumps
•  Patented Technology


product description:

Product Name

OMR/S/TC/TB/BMR Orbit hydraulic motor

Feature

1. Advanced Gerolor gear manufacturing device, which make the operation are stable and reliable
2. Low noise,high efficiency and long working life
3. small volume and easy to install

Material
Cast Iron
OEM/ODM
Customization Service Provided
MOQ
1PC
Package
ODM /OEM/1pc/carton
Delivery time
Within 1 to 7 days after receiving the payment

1. weight
160-520KG
2. power
90-175KW
3. Direction of rotation
4. reversible
Overall life
5. high Features
high volume efficiency and mechanical efficiency
6. Certification
ISO9001,CCS,KR,NK
