One Year Warranty Hydraulic Motor KM4 With Mounting Flanges / Shafts /

Product Details:
Place of Origin: China
Brand Name: Keystone
Certification: ISO9000
Model Number: KM4
Payment & Shipping Terms:
Minimum Order Quantity: 5 PCS
Packaging Details: Carton or wooden box
Delivery Time: Ten days after you confirm the order
Payment Terms: T/T or L/C
Supply Ability: 1000 pcs per month

Detail Information

Model: KM4 Certification: ISO 9001
Motor Shafts: Straight, Splined And Tapered Application: Construction Machinery And Agricultural Machinery
Flange: Square And Rhombus Flange Package: Standard
Color: As Requests Warranty: One Year
High Light:

spool valve motor

,

geroler motor

,

high efficiency motor

Product Description

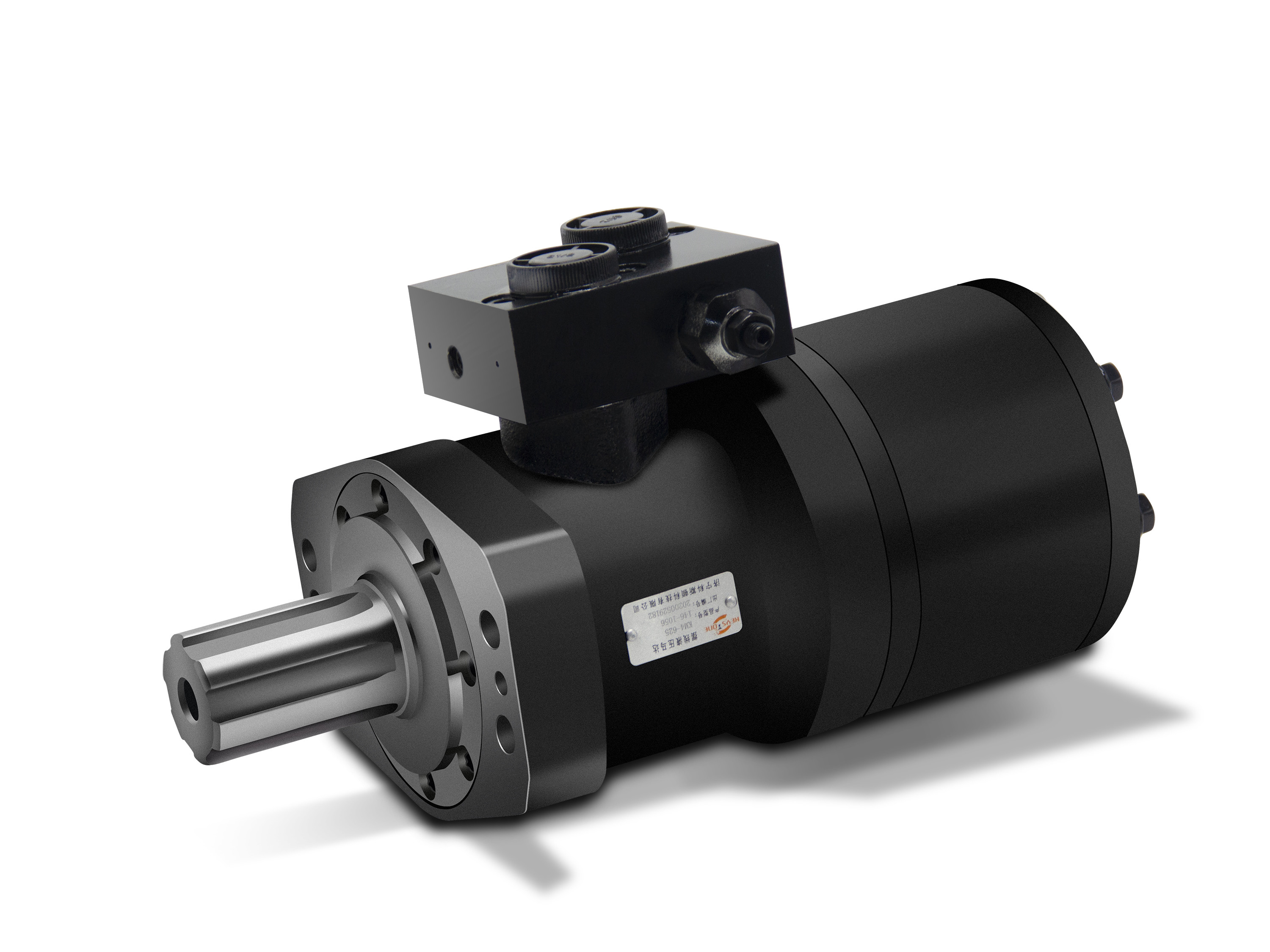

Economical Hydraulic Orbit Motor KM4 with Variety of Mounting Flanges, Shafts, Ports



Descrition:



Compact in design with spool valving and Geroler
Imported high pressure capacity shaft seal
Wide variety of mounting flanges, shafts, ports
and speed provides design flexibility

Direction of shaft rotation and speed can be controlled easily and smoothly
Best combination of efficiency and economy in medium duty applications



Applications: Hydraulic system, engineering machine, industry machine



Specifications:



Displ.(cc/r) 245 310 390 490 630 800
Flow(LPM) Rated 80 80 80 80 80 80
Max 100 100 100 100 100 100
Speed(RPM) Rated 320 250 200 200 160 120
Max 350 280 230 200 160 120
Pressure(Bar) Rated 140 140 140 140 125 100
Max 150 150 150 150 130 120
Torque(Nm) Rated 400 500 550 680 780 800
Max 420 520 580 700 800 820
Weight   13 13.7 14.3 14.8 15.2 15.6





Competitive Advantage: Good quality, Complete Series, Competitive price and Best service.
