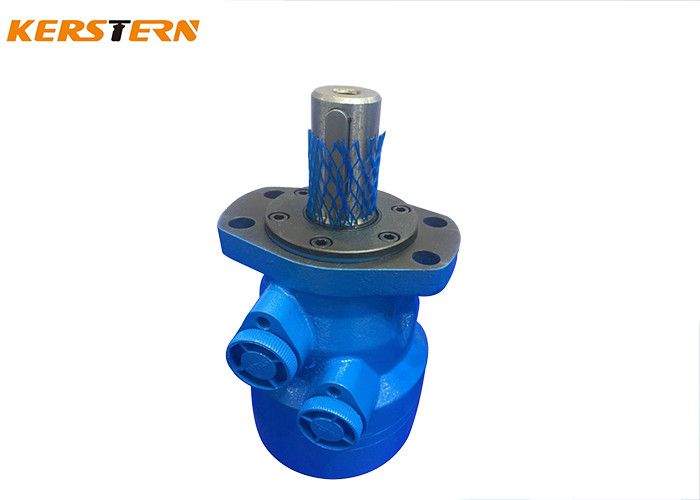

Small Commercial Hydraulic Motor , High Torque Low Rpm Hydraulic Motor

Small Commercial Hydraulic Motor , High Torque Low Rpm Hydraulic Motor

Small Commercial Hydraulic Motor , High Torque Low Rpm Hydraulic Motor

Product Details:

Place of Origin: CHINA
Brand Name: SJ HYD
Certification: ISO9001
Model Number: BM4-80

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: According to order quantity
Packaging Details: Carton and wooden box
Delivery Time: 7 work days
Supply Ability: 10000 pcs per month
Contact Now
Detailed Product Description

Model: BM4 Brand: SJ Hydraulic
Type: Hydraulic Motor Place Of Origin: China
Certification: ISO 9001 Material: Cast Iron
Motor Shafts: Straight, Splined And Tapered Power: Hydraulic Oil
Structural Style: Cycloid Processing: Forging&cutting
Application: Construction Machinery And Agricultural Machinery Flange: Square And Rhombus Flange
Package: Standard Color: As Requests
Warranty: One Year




Economical Hydraulic Orbit Motor BM4 with Variety of Mounting Flanges, Shafts, Ports







Descrition:



Compact in design with spool valving and Geroler
Imported high pressure capacity shaft seal
Wide variety of mounting flanges, shafts, ports
and speed provides design flexibility

Direction of shaft rotation and speed can be controlled easily and smoothly
Best combination of efficiency and economy in medium duty applications



Applications: Hydraulic system, engineering machine, industry machine



Specifications:



Displ.(cc/r) 245 310 390 490 630 800
Flow(LPM) Rated 80 80 80 80 80 80
Max 100 100 100 100 100 100
Speed(RPM) Rated 320 250 200 200 160 120
Max 350 280 230 200 160 120
Pressure(Bar) Rated 140 140 140 140 125 100
Max 150 150 150 150 130 120
Torque(Nm) Rated 400 500 550 680 780 800
Max 420 520 580 700 800 820
Weight   13 13.7 14.3 14.8 15.2 15.6
