March 21, 2022

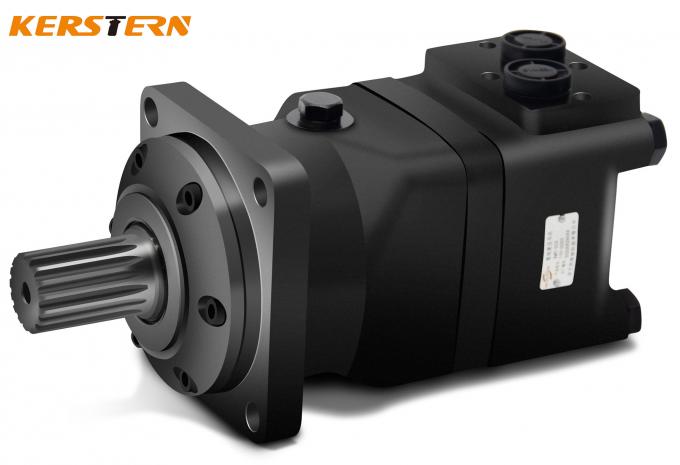

Eaton Hydraulic Motor KMT Series Replace Danfoss OMT Series / MT Series
Characteristic features:
* Advanced manufacturing devices for the Geroler gear set,which use low pressure of
start-up, provide smooth and reliable operation and high efficiency.
* The output shaft adapts in tapered roller bearings that permit high axial and radial
forces.Can offer capacities of high pressure and high torque in the wide of applications.
* Advanced design in disc distrbution flow, which can automatically compensate in
operating with high volume efficiency and long life, provide smooth and reliable operation
| Feature | Code | Description |
|---|---|---|
| PRODUCT | M | MOTOR |
| SERIES | 04 | 4000 SERIES |
| DISPLACEMENT | 099 | 162.2 CM3/R [9.90 IN3/R] |
| MOUNTING TYPE | AB | STANDARD, 4 BOLT; 101.60 [4.000] PILOT DIA 14.7 [.58] SLOTS ON 127.00 [5.000] DIA.BOLT CIRCLE. (SAE B) |
| OUTPUT SHAFT | 01 | 31.75 [1.250] DIA. STRAIGHT WITH .375-16UNC-2B THREAD, 53.1 [2.09] MAX COUPLING LENGTH, 7.938 [.3125] SQ X 41.27 [1.625] STRAIGHT KEY |
| PORTS | AB | 1.0625-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS |
| CASE FLOW OPTIONS | 02 | .4375-20 UNF-2B SAE O-RING PORT WITH CHECK VALVE |
| LOW PRESSURE RELIEF | 0 | NONE |
| PRESSURE/FLOW OPTION | 00 | NONE |
| GEROLER OPTION | 0 | STANDARD |
| SEAL OPTION | 0 | STANDARD |
| ACCESSORIES | 00 | NONE |
| SPECIAL FEATURES (HARDWARE) | 00 | NONE |
| SPECIAL FEATURES (ASSEMBLY) | 00 | NONE |
| PAINT/PACKAGING | 00 | NO PAINT, INDIVIDUAL BOX |
| CUSTOMER IDENTIFICATION | 00 | NONE |
| DESIGN CODE | F | SIXTH |
