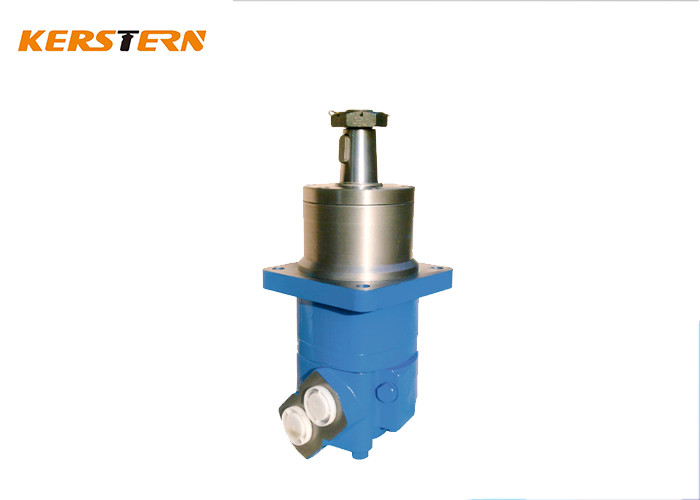

Hydraulic Wheel Motor Eaton 6000 series

Hydraulic Wheel Motor Eaton 6000 series

Brand Name:	KERSTERN
Model Number:	6000 series, BM6, KM6
MOQ:	5 PCS
Delivery Time:	Ten days after you confirm the order
Payment Terms:	T/T or L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Brand:

KERSTERN

Speed:

153-866 Rpm

Type:

Hydraulic Orbital Motor

Pressure:

12-31 Mpa

Torque:

575-1875 N*m

Output:

20-40 KW

Motor Application:

Excavator

Motor Flange:

Square And Rhombus Flange

Packaging Details:

Carton or wooden box

Supply Ability:

1000 pcs per month

Highlight:

Cast iron spool valve motor

310 LPM spool valve motor

hydraulic motor

Product Description

Hydraulic Wheel Motor 6000 series

Specifications:

Displacement(ml/r)		195	245	310	395	490	625	800	985
Flow(LPM)	Cont.	150	150	150	150	150	150	150	150
Flow(LPM)	Int..	170	210	225	225	225	225	225	225
Speed(RPM)	Cont.	775	615	485	383	307	241	184	153
Speed(RPM)	Int..	866	834	698	563	454	355	276	230
Pressure(Mpa)	Cont.	20.5	20.5	20.5	20.5	17	14	12	12
Pressure(Mpa)	Int..	31	31	31	31	27.5	17	14	14
Torque(N*m)	Cont.	575	735	930	1169	1215	1330	1380	1570
Torque(N*m)	Int..	860	1180	1335	1655	1885	1380	1650	1875

Note:

1. Continuous data:The Max.Value of operating motor continuously.

2. Intermittent Data:The Max.Value of operating motor in 6 seconds per minute.

3. A simultaneous max. RPM and max. Pressure is not recommended.

4. The Conversion Factors is on the page 4, consult it please

5. Optimum operating situation should be at the 1/3 ~ 2/3 of the continuous operating situation.

Descrition:

Compact in design with spool valving and Geroler
Imported high pressure capacity shaft seal
Wide variety of mounting flanges, shafts, ports
and speed provides design flexibility

Direction of shaft rotation and speed can be controlled easily and smoothly
Best combination of efficiency and economy in medium duty applications

Applications: Hydraulic system, engineering machine, industry machine

Competitive Advantage: Good quality, Complete Series, Competitive price and Best service.
