BMT OMT500 Orbit Hydraulic Motor Disc Valve Danfoss Eaton Replace
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | KERSTERN |
| Certification: | ISO9001 |
| Model Number: | OMM HMM, KMM |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | 1 USD |
| Packaging Details: | Standard Package |
| Delivery Time: | 10 days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000 set per month |
|
Detail Information |
|||
| Specification: | 8-50 Ml/r | Speed: | 500-2450 Rpm |
|---|---|---|---|
| Pressure: | 14 MPa | Flow: | 16-25 Lpm |
| Model: | OMM 8, 12, 20, 32 | Brand: | Replaced Danfoss, Parker, Eaton |
| High Light: | OMM Orbit Hydraulic Motor,KMM Orbit Hydraulic Motor,hydraulic rotor motor 2450 Rpm |
||
Product Description

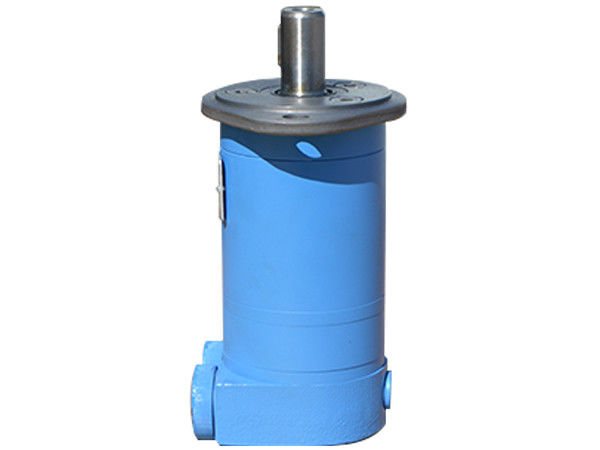

High Efficiency OMM KMM Series Orbit Hydraulic Motor Pressure 14 MPa 500-2450 Rpm
OMM HMM KMM motor
|
Model KMM
|
Displacement cc
|
Input pressure cont. bar |
Differential pressure cont. bar |
Flow cont. lpm
|
Torque cont. Nm
|
Speed max. rpm
|
Power max. Kw
|
Weight Kg
|
| 8 | 8.2 | 140 | 100 | 16 | 11 | 1950 | 2.3 | 2 |
| 12 | 12.9 | 140 | 100 | 20 | 16 | 1550 | 2.3 | 2 |
| 20 | 19.9 | 140 | 100 | 20 | 25 | 1000 | 2.3 | 2.06 |
| 32 | 31.6 | 140 | 100 | 20 | 40 | 630 | 2.3 | 2.15 |
| 40 | 39.8 | 140 | 90 | 20 | 45 | 500 | 1.8 | 2.2 |
| 50 | 50.3 | 140 | 70 | 20 | 46 | 400 | 1.8 | 2.25 |
Highlights
1. Spool valve design and Gerotor gear set hydraulic motor with compact design and small displacement
2. Suitable for applications where high speed and small dimensions are required
Description
1. Hydraulic motor with solid gear ring and drum distributor valve for open and closed circuit, suitable for continuous operation at medium pressure or short-term operation at high pressure
2. Double shaft seal to protect the main seal from dust and other contaminants
3. Integrated non-return valves (standard) to reduce the maximum case pressure with closed drain port
4. External drain connection in the end cap to relieve the case pressure
5. Very compact dimensions and high permissible speeds
6. Smooth running operation and constant torque over the entire speed range
Characteristics
1. Small volume, high efficiency, high speed, long service life.
2. Shaft seal pressure is high, can be used series and parallel.
3. Compact structure design is advanced, the power is great.
Competitive
Good quality, complete series, competitive price, best service, long warranty period.
Applications
Engineering machinery and agricultural machinery.
