BMT OMT500 Orbit Hydraulic Motor Disc Valve Danfoss Eaton Replace
|
Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KERSTERN |
| Certification: | ISO9001 |
| Model Number: | OMS KM5 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pc |
| Price: | USD 1 |
| Packaging Details: | Standard package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 pcs/month |
|
Detail Information |
|||
| Model: | OMS MS BMSY Orbital Motor | Pressure: | 8-20Mpa |
|---|---|---|---|
| Displacement: | 50-500ml/r | Speed: | 110-970rpm |
| Torque: | 100-580N*m | Place Of Origin: | China |
| Warranty: | One Year | ||
| High Light: | 50ml/r Hydraulic Wheel Motor,BM2 Hydraulic Wheel Motor,315cc small high torque dc motor |
||
Product Description

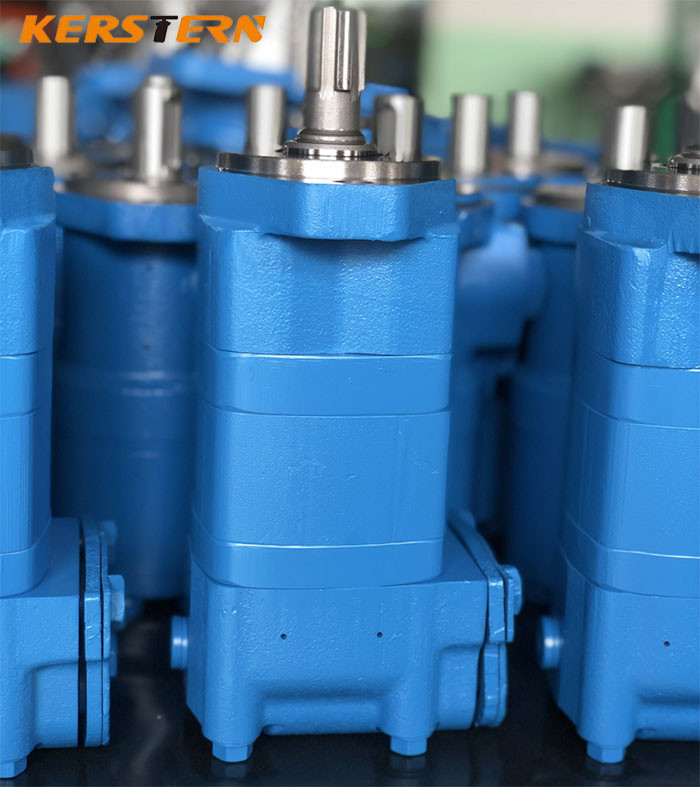

One Year Warranty Hydraulic orbital Motor Torque 100-580N*M / Pressure 8-20Mpa
1. Disc valve motor, geroler type
2. Compact size, high efficiency
3. Low-friction and long life advantages
4. Internal check valves, Escort seal
5. This motor has a rugged housing with an extra large capacity side load bearing
Main technical data sheet:
| Displacement(ml/r) | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 305 | 400 | 500 | |
|
flow (LPM) |
cont. | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 85 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 130 | 130 | |
|
speed (RPM) |
cont. | 850 | 675 | 552 | 430 | 345 | 276 | 246 | 226 | 183 | 144 |
| int. | 956 | 855 | 700 | 660 | 529 | 423 | 378 | 347 | 308 | 246 | |
|
pressure (MPA)
|
cont. | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 15 | 15 | 12 |
| int. | 28 | 28 | 28 | 25 | 25 | 25 | 25 | 21 | 17 | 15 | |
|
torque (N*M)
|
cont. | 178 | 223 | 278 | 356 | 445 | 557 | 592 | 580 | 715 | 720 |
| int. | 286 | 356 | 445 | 509 | 636 | 755 | 779 | 763 | 840 | 860 | |
|
output power (KW)
|
cont. | 16 | 18.8 | 19.5 | 15.6 | 15.6 | 14 | 14 | 14 | 11 | 9 |
| int. | 20 | 23.5 | 23 | 21 | 18 | 17 | 17 | 17 | 13 | 11 |
Product application:
Hydraulic motors are ideally suited for Applications demanding vary high Torque at low or variable speeds, along with economy, compact size, reliability, maintenance-free service etc. These motors also provide a cost effective alternative to many other variable speed drives in vogue.
Packaging & delivery:
standard package with carton or wooden box.
Delivery time: 7-15 days after received payment.
Transportation: as per your request.
Warranty: one year after the goods leave our factory.
Services:
Our company professional produce all kinds of hydraulic motors and related parts that can meet all your need. We have the experienced engineers to select the appropriate models for you.
