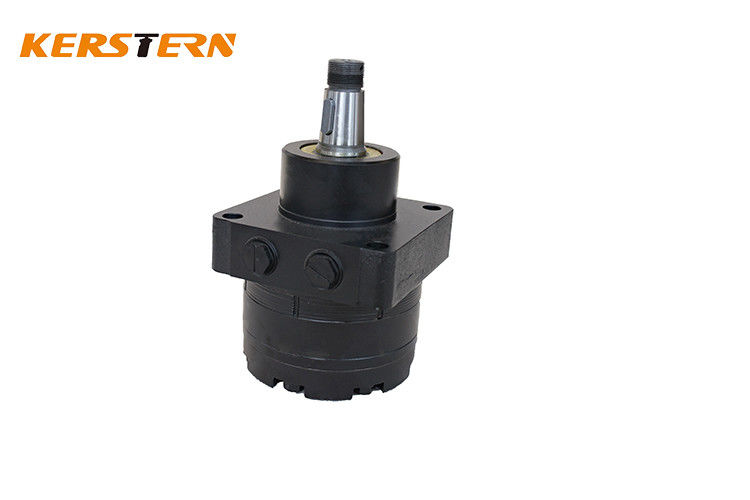

OMER BMER replacement of White and Parker High Speed High Torque Hydraulic Motor Variable Displacement
OMER BMER replacement of White and Parker High Speed High Torque Hydraulic Motor Variable Displacement
OMER BMER replacement of White and Parker High Speed High Torque Hydraulic Motor Variable Displacement OMER BMER replacement of White and Parker High Speed High Torque Hydraulic Motor Variable Displacement

OMER BMER replacement of White and Parker High Speed High Torque Hydraulic Motor Variable Displacement

Product Details:
Place of Origin: CHINA
Brand Name: KERSTERN
Certification: ISO9001
Model Number: RE KMER BMER
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: According to order quantity
Packaging Details: Carton and wooden box
Delivery Time: 7 work days
Supply Ability: 10000 pcs per month
Contact Now

Detail Information
Model Number: RE KMER BME Application: Excavators, Sweeper, Crusher, Harvester
Certification: ISO9001 Speed: 100-450 Rpm
Pressure: 10.5-24 Mpa Torque: 349-1180 N*M
High Light:

KMER char lynn hydraulic pump

,

OMER char lynn hydraulic pump

,

danfoss hydraulic motor ISO9001

Product Description

Model: KMER Brand: KERSTERN Hydraulic
Type: Hydraulic Orbital Motor Place Of Origin: China
Certification: ISO 9001 Material: Cast Iron
Motor Shafts: Straight, Splined And Tapered Power: Hydraulic Oil
Structural Style: Orbital Processing: Forging&cutting
Application: Construction Machinery And Aerial working Platform Flange: Square And Rhombus Flange
Package: Standard Color: As Requests
Warranty: One Year






Descrition:



Adopt advanced fixed rotor design, low starting pressure, high efficiency.
High working pressure, high output torque, needle roller bearing design, can withstand higher axial force and radial force.
Advanced high-speed distribution structure, strong automatic compensation performance, high volume efficiency, smooth movement at low speed.







Applications: Mini Excavator, Aerial Working Platform, Sweeper.



Specifications:



Displacement(ml/r) 127 163 200 225 259 295 349 372 473 540 745
flow(LPM) cont. 45 60 70 70 75 80 80 75 75 75 75
int. 60 75 85 85 90 95 95 90 90 90 90
speed(RPM) cont. 336 350 330 290 290 250 215 200 150 140 100
int. 450 440 425 365 350 315 365 240 180 170 120
pressure(MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
int. 24 24 24 24 24 24 24 24 19 17.5 12
torque(N*m) cont. 349 470 532 625 700 810 905 990 1110 980 1050
int. 408 548 602 710 790 930 1035 1140 1208 1240 1180
output power(KW) cont. 12 15 15.5 16 17.5 18 17.5 16.5 14.5 11.5 8
int. 14 17.5 18 19 20 21 20 19 16.5 15 10

Tag:

spool valve motor

high efficiency motor

geroler motor
