Hydraulic Wheel Motor
Created with Pixso. 250cc 8mpa 20Mpa High Speed Hydraulic Wheel Gear Motor Pressure For BM1 Wheel Motor

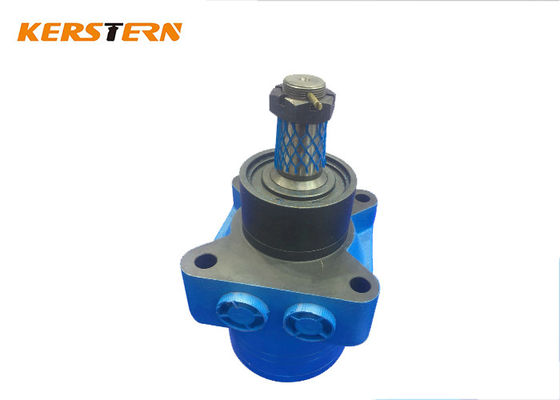

250cc 8mpa 20Mpa High Speed Hydraulic Wheel Gear Motor Pressure For BM1 Wheel Motor

Brand Name: SJ HYD
Model Number: BM1W
MOQ: 1 pcs
Price: USD 1
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Model:
BM1 Wheel Motor
Pressure:
8-20Mpa
Displacement:
50-500ml/r
Speed:
110-970rpm
Torque:
100-580N*m
Place Of Origin:
China
Warranty:
One Year
Packaging Details:
Standard package
Supply Ability:
1000 pcs/month
Highlight:

250cc high speed hydraulic wheel motor

,

400cc high speed hydraulic wheel motor

,

11 bar hydraulic oil motor

Product Description

High Torque High Speed Hydraulic Gear Motor Pressure 8-20Mpa For BM1 Wheel Motor



hydraulic motor is one type of high torque Iow speed hydraulic motors, with high efficiency and long life. BM motor has a wide Speed range, high starting torque and rotating stable at high speed Compact and light, it can be connected to working machine directly, adapted to all kinds of Iow speed heavy load facilities.



Main technical data sheet:



Model

BM1W



Displacement

cc



Continuous pressure

bar

Intermittent pressure

bar

Continous

flow

lpm



Intermittent

flow

lpm

Continuous torque

N*m



Intermittent torque N*m



  50 14 17.5 40 50 100 126
  63 14 17.5 40 50 124 156
  80 17.5 20 60 75 190 220
  100 17.5 20 60 75 240 280
  125 17.5 20 60 75 292 340
  160 16.5 20 60 75 363 430
  200 13 17.5 60 75 358 448
  250 11 14 60 75 352 470
  315 8.5 11.5 60 75 360 470
  400 8.5 11.5 60 75 420 548
  500 8 9 60 75 464 580



Product application:

Hydraulic motors are ideally suited for Applications demanding vary high Torque at low or variable speeds, along with economy, compact size, reliability, maintenance-free service etc. These motors also provide a cost effective alternative to many other variable speed drives in vogue.



250cc 8mpa 20Mpa High Speed Hydraulic Wheel Gear Motor Pressure For BM1 Wheel Motor

250cc 8mpa 20Mpa High Speed Hydraulic Wheel Gear Motor Pressure For BM1 Wheel Motor

250cc 8mpa 20Mpa High Speed Hydraulic Wheel Gear Motor Pressure For BM1 Wheel Motor



Packaging & delivery:

standard package with carton or wooden box.



Delivery time: 7-15 days after received payment.



Transportation: as per your request.



Warranty: one year after the goods leave our factory.



Services:

Our company professional produce all kinds of hydraulic motors and related parts that can meet all your need. We have the experienced engineers to select the appropriate models for you.
