EATON Orbital High Speed Hydraulic Wheel Motor High Rpm NK
|
Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | keystone |
| Certification: | ISO9001 |
| Model Number: | KMM-8 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | One pcs |
| Price: | Negotiable |
| Packaging Details: | Standard package |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs |
|
Detail Information |
|||
| Type: | Hydraulic Orbital Motor | Displacement: | 8cc |
|---|---|---|---|
| Oil Ports: | Rear Ports And Side Ports | Material: | Cast Iron |
| Net Weight: | 2-3kgs | Warranty: | One Year |
| Color: | Black, Blue Or As Client's Requests | ||
| High Light: | 1950rpm High Speed Hydraulic Motor,3kg High Speed Hydraulic Motor,kmm motor for Conveyors |
||
Product Description

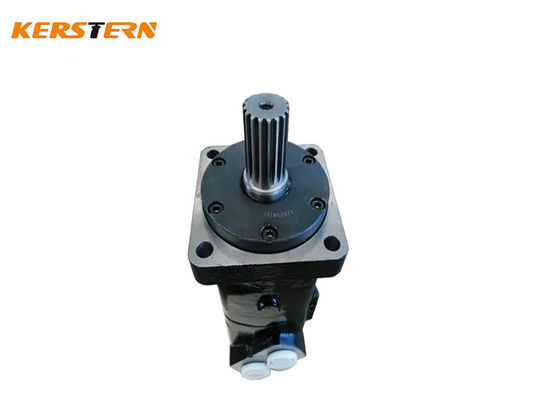

Big Displacement Small Volume High Speed Hydraulic Motor HMM-8/REV for Conveyors
Quick Detail:
BMM series orbital hydraulic motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weight
| Type | BMM | |
| 8 | ||
| Displacement (cm3/rev.) | 8.2 | |
| Max. speed (rpm) | cont. | 1950 |
| int. | 2450 | |
| cont. | 11 | |
| Max. torque (N•m) | int. | 15 |
| Max. output (k W) | cont. | |
| int. | ||
| Max. pressure drop (MPa) | cont. | 10 |
| int. | 14 | |
| peak | ||
| Max. flow (L/min) | cont. | 16 |
| int. | 20 | |
| Weight (kg) | 2-3 | |
| Option: | Application: | |
| - Model - Spool valve, gerotor; | *Conveyors | |
| - With or without flange; | *Textile machines | |
| - Side and rear ports; | *Machine tools | |
| - Shaft - straight and splined; | *Mining machinery | |
| - Flange-circle or Rhomb flange | *Construction plant equipment | |
| - Three ports - Metric /UNC and BSPP; | *Access platforms | |
| - Color-Blue, grey ,black ,yellow |
Competitive Advantage:
Characteristic features:
• Smooth running over the entire speed range
• Constant operating torque over a wide speed range
• High starting torque
• High return pressure without the use of drain line (High pressure shaft seal)•
High efficiency
• Long life under extreme operating conditions
• Robust and compact design
• For applications in both open and closed loop hydraulic systems
• Suitable for a wide variety of hydraulics fluids
| DANFOSS | CHAR-LYNN –EATON CODE | M+S |
| BMM series like OMM series | BMM series like J-2 (129) series | BMM series like MM/MLHM series |
| BMP series like OMP series | BMPH series like H (101)series | BMP series like MP/MLHP series |
| BMR series like OMR series | BMRS series like R (103)series | BMR series like MR/MLHR series |
| BMS series like OMS series | BMSE series like 2k (104)series | BMS series like MS/MLHS series |
| BMT series like OMT series | BMTE series like 6K(112) series | BMT series like MT/MLHT series |
| BMV series like OMV series | BMVE series like10K(119) series | BMV series like EMV/MLHV series |
