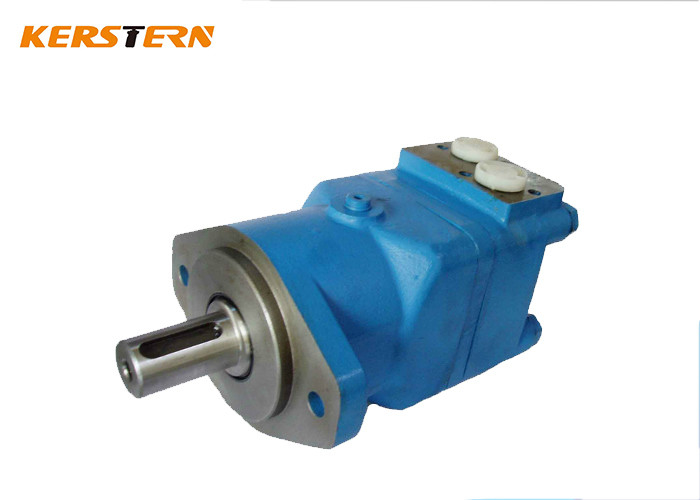

BMR MR BM2B 80cc 315cc Brake Orbital Motors Orbit Hydraulic Displacement

BMR MR BM2B 80cc 315cc Brake Orbital Motors Orbit Hydraulic Displacement

Brand Name:	KERSTERN
Model Number:	BM2B BMR
MOQ:	One pcs
Price:	USD 1
Delivery Time:	15-20 days after receievd payment
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Type:

Brake Orbital Hydraulic Motor

Displacement:

80-315cc

Pressure:

14mpa

Brake:

Static Brake

Torque:

300-500 N*m

Max Flow:

50LPM

Guarantee:

1 Year

Packaging Details:

Standard packages

Supply Ability:

1000 pcs per month

Highlight:

BM2 Brake orbital motors

80cc orbital motors

315cc motor orbit hydraulic

Product Description

BM2B series Hydraulic motors bulit-in integrated dynamic holding brake

BM2B Series orbital hydraulic motor with brake extending BMR series motor range. This motor has an integrated holding brake.
36CC - 500CC Orbital Hydraulic Motor Spool Mode Side Port With Built - In Brake

Type		BMR-BK01	BMR-BK01	BMR-BK01	BMR-BK01	BMR-BK01	BMR-BK01	BMR-BK01	BMR-BK01	BMR-BK01
		50	80	100	125	160	200	250	315	375
		51.7	81.5	102	128	157	195	253	318	381
Max. speed (rpm)	cont.	509	502	497	459	372	301	231	184	166
Max. speed (rpm)	int.	603	598	574	574	465	376	289	230	192
Max. torque (N•m)	cont.	103	203	254	317	391	359	437	456	465
	int.	88.6	160	200	250	308	333	473	502	520
	rated	104	164	205	256	316	335	437	456	465
Max. output (kW)	cont.	5.5	10.7	13.2	15.2	15.2	11.3	10.6	8.8	8.1
Max. output (kW)	int.	5.6	10	12	15	15	13.1	14.3	12.1	10.5
Max. pressure drop(Mpa)	cont.	14	17.5	17.5	17.5	17.5	13	12	10	8.5
	int.	17.5	20	20	20	20	17.5	13	11	9.5
	rated	14	14	14	14	14	12	12	10	8.5
Max.flow (L/min)	cont.	27	42	52	60	60	60	60	60	65
Max.flow (L/min)	int.	32	50	60	75	75	75	75	75	75

Characteristic features:
1. Advanced manufacturing devices for the Geroler gear set , which use low pressure of start-up ,
provide smooth , reliable operation and high efficiency .
2. Shaft seal can bear high pressure of back and the motor can be use in parallel or in series .
3. Special design in the driver-linker and prolong operating life .
4. Special design for distribution system can meet the requirement of low noise of unit .
4. Compact volume and easy installation .
5. Small volume and radial dimension,high holding torque,power brake,low weight and easy to install.
