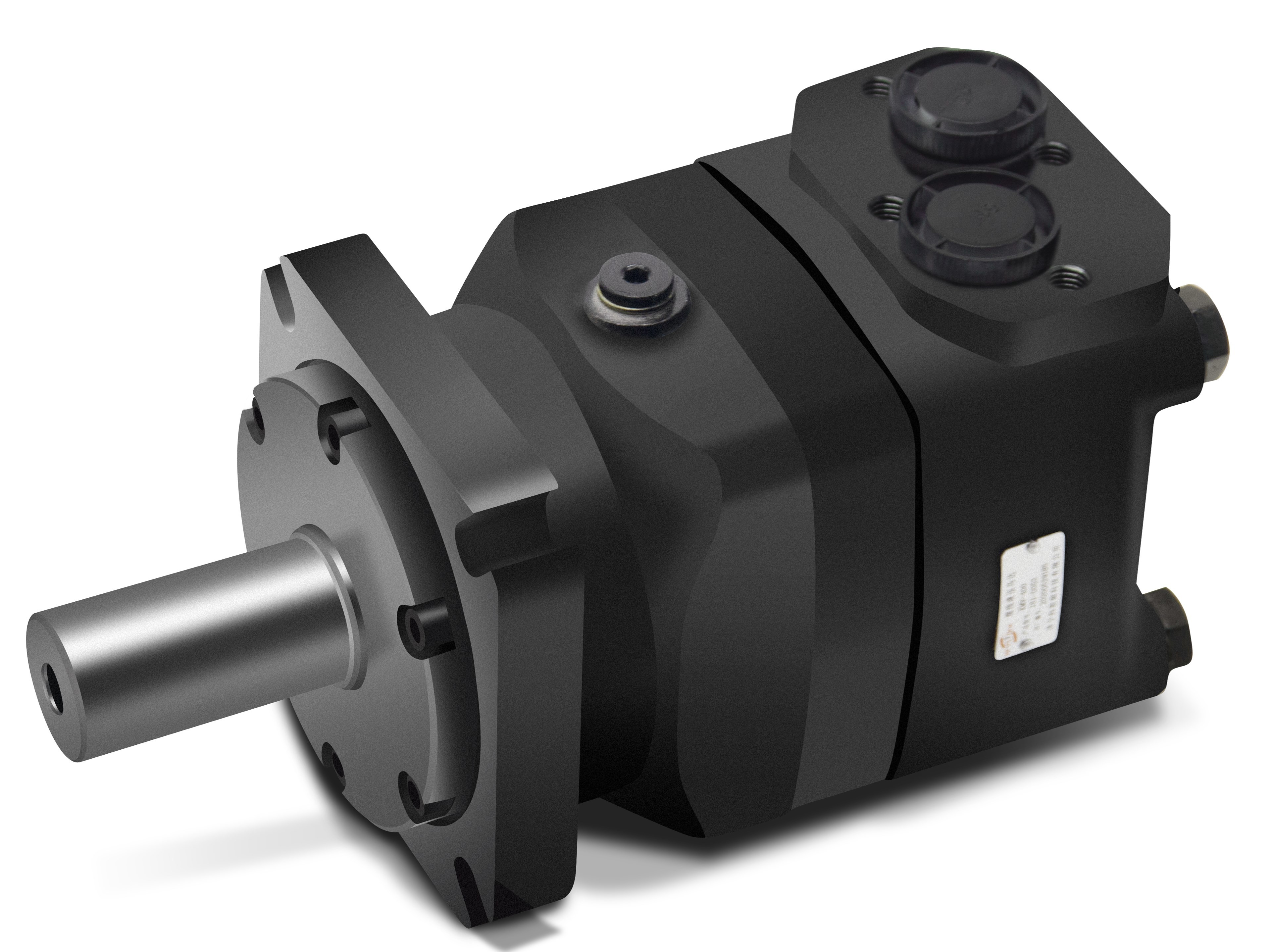

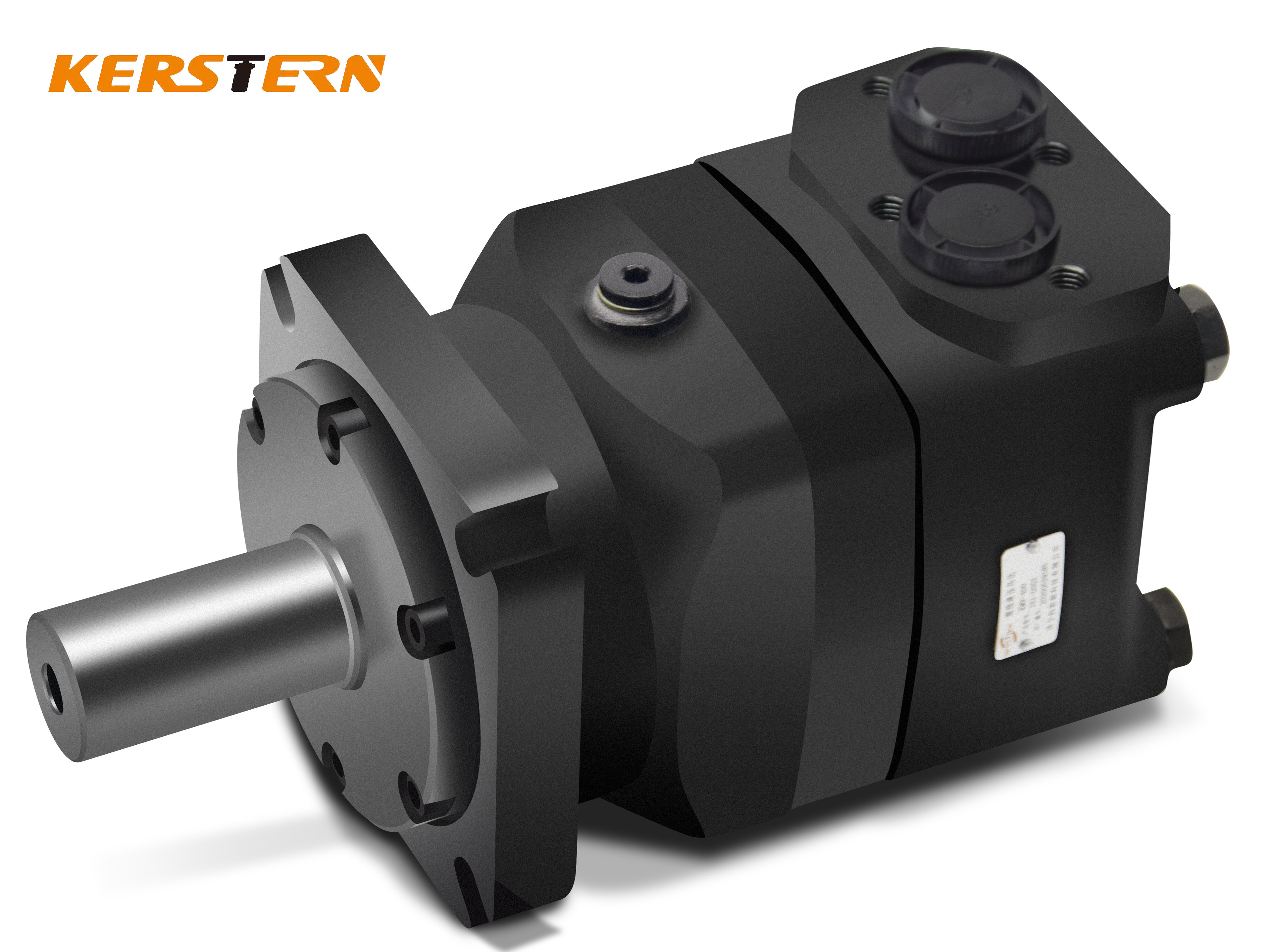

OMV BMV500 1000cc Orbit Hydraulic Motor For Hydraulic Engineer
OMV BMV500 1000cc Orbit Hydraulic Motor For Hydraulic Engineer
OMV BMV500 1000cc Orbit Hydraulic Motor For Hydraulic Engineer OMV BMV500 1000cc Orbit Hydraulic Motor For Hydraulic Engineer OMV BMV500 1000cc Orbit Hydraulic Motor For Hydraulic Engineer

OMV BMV500 1000cc Orbit Hydraulic Motor For Hydraulic Engineer

Product Details:
Place of Origin: CHINA
Brand Name: KERSTERN
Certification: ISO9001
Model Number: OMV BMV
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1
Packaging Details: Standard packages
Delivery Time: According to order quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 pcs per month
Contact Now

Detail Information
Product Name: Hydraulic Motor Displacement: 315cc-1000cc
Speed: 200-630 Rpm Pressure: 21-25mpa
Torque: 920-2280 N*m Material: Cast Iron
Flow: 160-240 Lpm Oil Port: Many Port Sizes
Highlight:

OMV KMV Orbit Hydraulic Motor

,

1000cc Orbit Hydraulic Motor

,

800CC hydraulic pump

Product Description

OMV/BMV 315/400/500/630/800/1000 Hydraulic Motor For Heavy Duty Hydraulic Engineer



Large torque Hydromotor OMV/KMV 1000 compatible with omv 1000 hydraulic motors

Our hydraulic motor can replace Sauer- orbital motors ,the similar design ,the same mounting ,use ,etc. We can offer more than 2000 different orbital motors, many in types, vari­ants and sizes (incl. different shaft versions).

• Technical data on small motors: BMM replace OMM
• Technical data on medium sized motors: BMP,BMR,BMH replace OMP, OMR, OMH
• Technical data on medium sized motors: BMSY replace OMS
• Technical data on large motors: BMT,BMV replace OMT and OMV



Type KMV KMV KMV KMV KMV KMV
315 400 500 630 800 1000
Displacement 333 419 518 666 801 990
Max. speed (rpm) cont. 510 500 400 320 250 200
int. 630 600 480 380 300 240
Max. torque (N• m) cont. 920 1180 1460 1660 1880 2015
int. 1110 1410 1760 1940 2110 2280
peak 1290 1640 2050 2210 2470 2400
Max. output (kW) cont. 38 47 47 40 33 28.6
int. 46 56 56 56 44 40
Max.pressure drop (MPa) cont. 20 20 20 18 16 14
int. 24 24 24 21 18 16
peak 28 28 28 24 21 18
Max. flow (L/min) cont. 160 200 200 200 200 200
int. 200 240 240 240 240 240
Weight (kg) 31.8 32.6 33.5 34.9 36.5 38.6



Packing:
OMV BMV500 1000cc Orbit Hydraulic Motor For Hydraulic Engineer 0
Transportation:
OMV BMV500 1000cc Orbit Hydraulic Motor For Hydraulic Engineer 1

FAQ:

1. who are we?
We are based in Jining, China, start from 2003
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Hydraulic motor
4. How long is the Warranty?
One-year warranty.
5. What is your payment terms?
Re: 100% in advance, long-term dealer 30% in advance, 70% beofre shipping.
6. How about the delivery time?
Normal Models within 2 days, unusual models and bulk order within 5-10 days.
