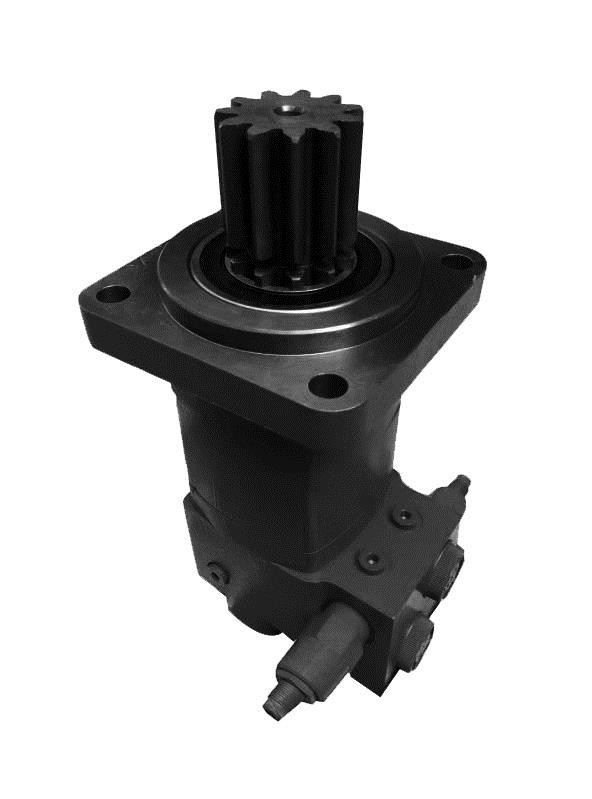

OMER KMER 200 Hydraulic Orbital Motor Danfoss High Pressure
|
Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SJ HYD |
| Certification: | ISO9001 |
| Model Number: | BM5S |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pcs |
| Price: | USD 1 |
| Packaging Details: | Standard package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 pcs/month |
|
Detail Information |
|||
| Model: | BM5S | Pressure: | 8-20Mpa |
|---|---|---|---|
| Displacement: | 50-500ml/r | Speed: | 110-970rpm |
| Torque: | 100-580N*m | Place Of Origin: | China |
| Warranty: | One Year | ||
| High Light: | parker Hydraulic Orbital Motor,BM5S Hydraulic Orbital Motor,danfoss gerotor motor 110rpm |
||
Product Description
|
item
|
value
|
|
Pressure
|
OEM
|
|
Structure
|
OEM
|
|
Weight
|
OEM
|
|
Power
|
OEM
|
|
Dimension(L*W*H)
|
OEM
|
|
Warranty
|
Other
|
|
After Warranty Service
|
Online support
|
|
Local Service Location
|
None
|
|
Showroom Location
|
None
|
|
Place of Origin
|
China
|
|
After-sales Service Provided
|
Online support
|
|
Motor Type
|
GEAR MOTOR
|
|
Displacement
|
Other
|
|
Protect Feature
|
Hydraulic oil driving
|
|
Function
|
Driving
|
|
Power
|
Hydraulic Driving
|
|
Weight
|
5.6-7.4kg
|
|
Usage
|
Injection Molding,cleaning machine,ect
|
|
Structure
|
Hydraulic system, low price and top quality
|
Main technical data sheet:
|
Model BM5S |
Displacement (ml/r) |
Continuous pressure (Mpa) |
Intermittent pressure (Mpa) |
Continous flow (lpm) |
Intermittent flow (lpm) |
Continuous torque (N*m) |
Intermittent torque (N*m) |
| 80 | 17.5 | 28 | 75 | 85 | 178 | 285 | |
| 100 | 17.5 | 28 | 75 | 95 | 223 | 356 | |
| 125 | 17.5 | 28 | 75 | 95 | 278 | 445 | |
| 160 | 17.5 | 25 | 75 | 115 | 356 | 509 | |
| 200 | 17.5 | 25 | 75 | 115 | 445 | 636 | |
| 250 | 17.5 | 25 | 75 | 115 | 557 | 755 | |
| 280 | 17.5 | 25 | 75 | 115 | 592 | 779 | |
| 305 | 15 | 21 | 75 | 115 | 580 | 763 | |
| 400 | 15 | 17.5 | 75 | 130 | 715 | 840 | |
| 500 | 12 | 15 | 75 | 130 | 720 | 860 |
Product application:
Hydraulic motors are ideally suited for Applications demanding vary high Torque at low or variable speeds, along with economy, compact size, reliability, maintenance-free service etc. These motors also provide a cost effective alternative to many other variable speed drives in vogue.
Packaging & delivery:
standard package with carton or wooden box.
Delivery time: 7-15 days after received payment.
Transportation: as per your request.
Warranty: one year after the goods leave our factory.
Services:
Our company professional produce all kinds of hydraulic motors and related parts that can meet all your need. We have the experienced engineers to select the appropriate models for you.
