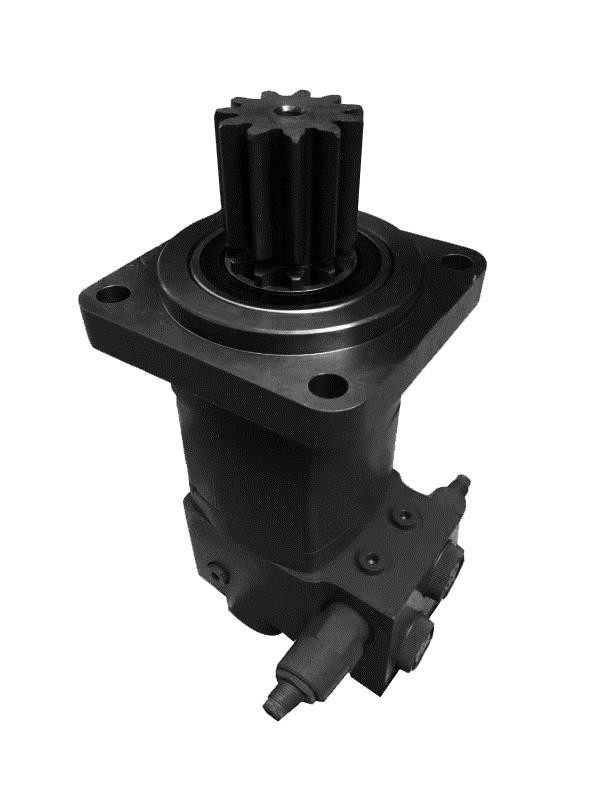

BM5S Gerotor Hydraulic Orbital Motor Parker Orbital Motor 110rpm
BM5S Gerotor Hydraulic Orbital Motor Parker Orbital Motor 110rpm
BM5S Gerotor Hydraulic Orbital Motor Parker Orbital Motor 110rpm BM5S Gerotor Hydraulic Orbital Motor Parker Orbital Motor 110rpm

BM5S Gerotor Hydraulic Orbital Motor Parker Orbital Motor 110rpm

Product Details:
Place of Origin: CHINA
Brand Name: SJ HYD
Certification: ISO9001
Model Number: BM5S
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD 1
Packaging Details: Standard package
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs/month
Contact Now

Detail Information
Model: BM5S Pressure: 8-20Mpa
Displacement: 50-500ml/r Speed: 110-970rpm
Torque: 100-580N*m Place Of Origin: China
Warranty: One Year
Highlight:

parker Hydraulic Orbital Motor

,

BM5S Hydraulic Orbital Motor

,

gerotor motor 110rpm

Product Description

parker Hydraulic Orbital Motor 2.5K Swing motor

Specification:
item
value
Pressure
OEM
Structure
OEM
Weight
OEM
Power
OEM
Dimension(L*W*H)
OEM
Warranty
Other
After Warranty Service
Online support
Local Service Location
None
Showroom Location
None
Place of Origin
China
After-sales Service Provided
Online support
Motor Type
GEAR MOTOR
Displacement
Other
Protect Feature
Hydraulic oil driving
Function
Driving
Power
Hydraulic Driving
Weight
5.6-7.4kg
Usage
Injection Molding,cleaning machine,ect
Structure
Hydraulic system, low price and top quality



Main technical data sheet:



Model

BM5S

Displacement

(ml/r)

Continuous pressure

(Mpa)

Intermittent pressure

(Mpa)

Continous

flow

(lpm)

Intermittent

flow

(lpm)

Continuous torque

(N*m)

 Intermittent torque (N*m)
  80 17.5 28 75 85 178 285
  100 17.5 28 75 95 223 356
  125 17.5 28 75 95 278 445
  160 17.5 25 75 115 356 509
  200 17.5 25 75 115 445 636
  250 17.5 25 75 115 557 755
  280 17.5 25 75 115 592 779
  305 15 21 75 115 580 763
  400 15 17.5 75 130 715 840
  500 12 15 75 130 720 860

Product application:

Hydraulic motors are ideally suited for Applications demanding vary high Torque at low or variable speeds, along with economy, compact size, reliability, maintenance-free service etc. These motors also provide a cost effective alternative to many other variable speed drives in vogue.



BM5S Gerotor Hydraulic Orbital Motor Parker Orbital Motor 110rpm 0

BM5S Gerotor Hydraulic Orbital Motor Parker Orbital Motor 110rpm 1

BM5S Gerotor Hydraulic Orbital Motor Parker Orbital Motor 110rpm 2



Packaging & delivery:

standard package with carton or wooden box.



Delivery time: 7-15 days after received payment.



Transportation: as per your request.



Warranty: one year after the goods leave our factory.



Services:

Our company professional produce all kinds of hydraulic motors and related parts that can meet all your need. We have the experienced engineers to select the appropriate models for you.



BM5S Gerotor Hydraulic Orbital Motor Parker Orbital Motor 110rpm 3
