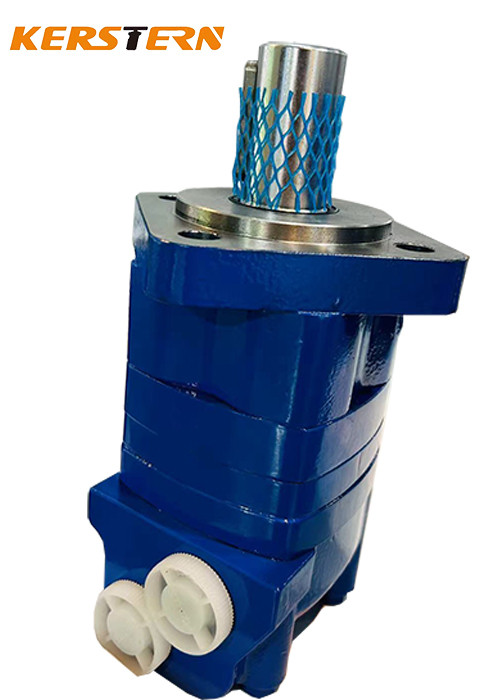

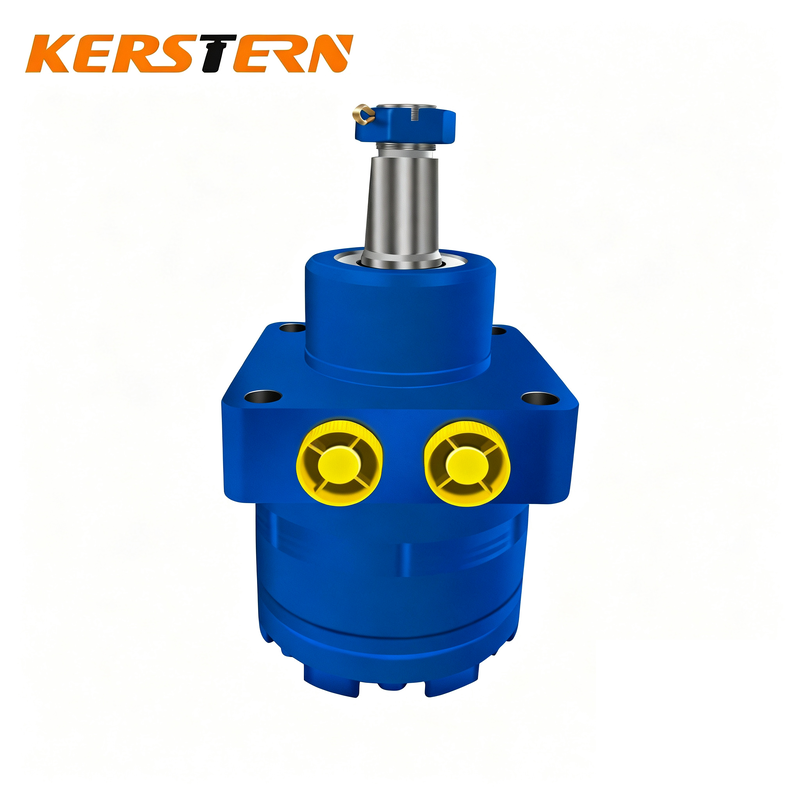

KM6 Variable High Torque Hydraulic Motor Wheel Motor Casting Steel 1875N
|
Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KERSTERN |
| Certification: | ISO9001 |
| Model Number: | OME BMER KMER series |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pc |
| Price: | According to order quantity |
| Packaging Details: | Carton and wooden box |
| Delivery Time: | 7 work days |
| Supply Ability: | 10000 pcs per month |
|
Detail Information |
|||
| Product Name: | Hydraulic Motor/orbital Hydraulic Motor | Displacement: | 125-750cc |
|---|---|---|---|
| Model: | BMER KMER OMER | Feature: | Low Speed Hight Toeque |
| Hydraulic Fluid: | Mineral Oil | Hydraulic Power Units: | Piston Pump |
| High Light: | High Torque Hydraulic Motors,Unmatched Power Hydraulic Motor,High Torque Hydraulic Motor |
||
Product Description
Applications: Arieal working platform, Excavator, engineering machine, industry machine
Product introduction:
High Torque Hydraulic Motor refers to a type of high torque hydraulic motor commonly used in industrial and construction machinery. It transmits power through the use of high-pressure liquids and has the advantages of high power density, low noise and low maintenance costs. Such motors typically consist of a fixed housing and a rotating impeller consisting of one or more blades that rotate under the push of a high-pressure liquid, thereby outputting torque.
Product advantage:
1. High Performance Hydraulic Motors with Exceptional Torque Output
2. State-of-the-Art High Torque Hydraulic Motors for Demanding Applications
3. Unbeatable Performance with Our High Torque Hydraulic Motors
4. Experience Unmatched Power with High Torque Hydraulic Motors
5. Leading the Way in High Torque Hydraulic Motor Technology
| Model: | KMER | Brand: | KERSTERN |
|---|---|---|---|
| Type: | Hydraulic Motor | Place Of Origin: | China |
| Certification: | ISO 9001 | Material: | Cast Iron |
| Motor Shafts: | Straight, Splined And Tapered | Power: | Hydraulic Oil |
| Structural Style: | Cycloid | Processing: | Forging&cutting |
| Application: | Construction Machinery And Agricultural Machinery | Flange: | Square And Rhombus Flange |
| Package: | Standard | Color: | As Requests |
| Warranty: | One Year |
Displacement 125-750cc High Torque Hydraulic Motor With Custom Color
| Displ.(cc/r) | 125 | 160 | 200 | 230 | 250 | 300 | |
| Flow(LPM) | Rated | 45 | 60 | 70 | 70 | 75 | 80 |
| Max | 60 | 75 | 85 | 85 | 90 | 95 | |
| Speed(RPM) | Rated | 350 | 365 | 320 | 300 | 295 | 245 |
| Max | 500 | 465 | 420 | 360 | 350 | 320 | |
| Pressure(Bar) | Rated | 21 | 21 | 21 | 21 | 21 | 21 |
| Max | 25 | 25 | 25 | 25 | 25 | 25 | |
| Torque(Nm) | Rated | 320 | 435 | 520 | 610 | 700 | 800 |
| Max | 400 | 520 | 600 | 700 | 800 | 950 | |
| Weight | 13 | 13.7 | 14.3 | 14.8 | 15.2 | 15.6 |
|
