Eaton 2000 Series Hydraulic Orbital Motor 2 Speed Motor

Product Details:
Place of Origin: CHINA
Brand Name: KERSTERN
Certification: ISO9001
Model Number: OMR BMR
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD 1
Packaging Details: standard package
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs

Detail Information

Usage: Hydraulic Oil Type: Orbit Motor
Application: Injection Machine,Road Leaning Machine,Loawn-cropping And Leather Cutting Etc. Pressure: 20.5Mpa
Torque: 1875N*m Flow: 225lpm
High Light:

2-speed Hydraulic Orbital Motor

,

2000 series Hydraulic Orbital Motor

,

Eaton Hydraulic Orbital Motor

Product Description

How does a hydraulic engine work?
Hydraulic Motor - an overview | ScienceDirect Topics
Hydraulic motors convert fluid pressure into rotary motion. Pressurized fluid from the hydraulic pump turns the motor output shaft by pushing on the gears, pistons, or vanes of the hydraulic motor.

What is hydraulic orbit motor?
Orbital motors convert hydraulic energy (pressure, oil flow) into mechanical energy (torque and speed). Sauer-Danfoss orbital motors are of fixed displacement high-torque design. For a given oil flow and given pressure the displacement (size of motor) determines the speed and torque.

Hydraulic motor application:
Hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner, grass cutter, etc.

Characteristic features:
1.  Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
2. The output shaft adapts in tapered roller bearing that permit high axial and radial forces. The case can offers capacities of high pressure and high torque in the wide of applications.
3.  Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.
4. The new series motor is suitable for vehicles with greater loads and pressure drop.

Product application:
Keystone  hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner, grass cutter,Winches, Conveyors, Slews, Sweeper Drives, Augers, Cutters, Mowers and Chippers.





Main specifications:



Displacement

(ml/r)

50 63 80 100 125 160 200 250 315 400 500

flow

(LPM)

cont. 40 40 60 60 60 60 60 60 60 60 60
int. 50 50 75 75 75 75 75 75 75 75 75

speed

(RPM)

cont. 755 630 750 600 475 375 300 240 190 160 110
int. 970 790 940 750 600 470 375 300 240 200 128

pressure

(MPa)

cont. 14 14 17.5 17.5 17.5 16.5 13 11 8.5 8.5 8
int. 17.5 17.5 20 20 20 20 17.5 14 11.5 11.5 9

torque

(N*m)



cont. 100 124 190 240 292 363 358 352 360 420 464
int. 126 156 220 280 340 430 448 470 470 548 580

output power

(KW)

cont. 9.5 12.5 12.5 12.5 12.5 12.5 10 7 6 5 5
int. 11.2 15 15 15 14.5 14 13 9.5 9 8 8



Quick details:



Type: hydraulic motor                                       Color: as client's requests



Brand name:  KERSTERN                                Certificate: ISO9001



Material: carbon steel                                         Place of origin: China



Usage: Slewing drive, Injection machine etc.      Model number: OMR BMR





Dtailed images:

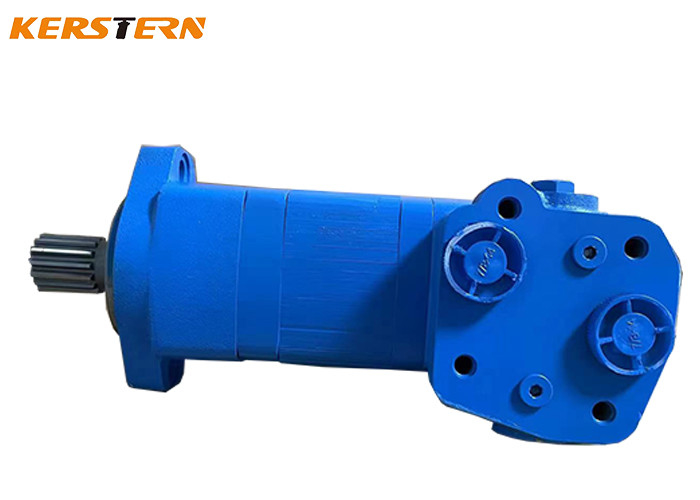

Eaton 2000 Series Hydraulic Orbital Motor 2 Speed Motor 0



Packing & delivery:



We supply hydraulic orbital motor, steering unit, steering column China high quality with ISO9001 certificate and 1 year warranty.

We devoted ourselves to hydraulic parts about 10 years. Covering all over the world market, we are expecting become your long- term partner in China.



Service:



PRE-SALE SERVICE:

We provide pre-sales in our first cooperation,make clear your situation and give you some advice,you can making invest budget,manufacturing,planing,so that customers can make a reasonable plan with less cost.

Stage 1st: Let us be honest with each other and make clear the situation of each customer first,then we can give the best advice . Stage 2nd: I will give the details to each customers for reference, including the dimension,performance,quality and price level.

Stage 3rd: we can compare the product one by one ,then confirm the reasonable products with the best price.



AFTER-SALE SERVICE:

After-sale service are most important in each business, we will do the below things in each order:
Stage 1st;Tracking the shipment and inform the customer before the arrival date.
Stage 2nd:Tracking the quality during the use condition.warranty 1 year
Stage 3rd:We will charge all the questions if you buy from me ,because reputation is most important in exporting business



FAQ:



Q1: Are you trading company or manufacturer ?
A: We are manufacturer
Q2: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We will show you the photos of the products and packages before you pay the balance.
Q3: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q4: Can you produce according to the sample?
A: Yes, we can produce according to your sample or your specific drawings
Q5: How about your delivery time?
A: Generally, it is about 25-45 days.Specific delivery time depend on your quality



If any questions, please feel free to contact us.
