Deer AH218741 Hydraulic Motor

Deer AH218741 Hydraulic Motor

Deer AH218741 Hydraulic Motor

Brand Name:	KERSTERN
Model Number:	AH218741 KM1 OMP OMR
MOQ:	1 pcs
Price:	USD 1
Delivery Time:	5-8 days
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Document:

KM1 Series by Keystone Hydr...ic.pdf

Weight:

Varies By Model, Typically 2-10 Kg

Operatingtemperaturerange:

-20°C To 80°C

Model:

OMR BMR

Usage:

BOAT, Industrial Equipment

Flow:

225lpm

Maximumspeed:

Up To 3000 RPM

Application:

Automatic Product

Efficiency:

Up To 85%

Portsize:

1/4 Inch To 1 Inch NPT

Operatingpressure:

Up To 250 Bar

Powersource:

Hydraulic

Displacement:

Variable (e.g., 10-100 Cc/rev)

Pressure:

20.5Mpa

Type:

Orbital Motor

Packaging Details:

Standard package

Supply Ability:

1000 pcs/month

Highlight:

Deer AH218741 hydraulic orbital motor

,

hydraulic motor with warranty

,

orbital motor for heavy machinery

Product Description

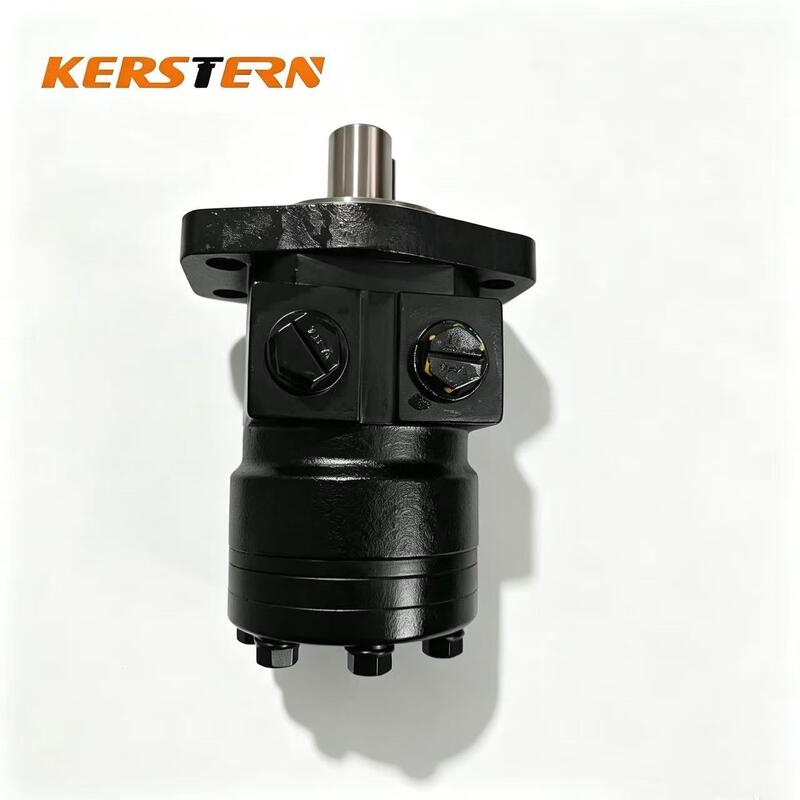

Deer AH218741 Hydraulic Motor – KM1 Series

1. Compact Design & High Power Density

The KM1 Series features a compact distribution shaft and integrated rotor design, providing a small overall size with high power density. This structure makes the motor suitable for applications where installation space is limited while maintaining the required hydraulic drive output.

2. Stable Low-Speed Operation

The KM1 hydraulic motor is designed for stable speed operation across different working conditions. With displacement options from 36 to 400 ml/r, the motor can be selected according to the required speed and torque of the hydraulic system.

3. High Torque Output for Medium-Load Applications

The KM1 Series is designed for medium-load applications, with continuous torque ranging from 68 to 610 N·mdepending on displacement. Intermittent torque can reach 88–690 N·m.

4. Reliable Shaft Seal & Flexible Hydraulic Connection

The KM1 Series incorporates a reliable shaft seal design capable of withstanding high back pressure. The motor can be used in series or parallel hydraulic circuits. A variety of output shafts, mounting flanges and oil-port connections are also available for different equipment configurations.

5. Flexible Pressure, Speed & Displacement Selection

The KM1 Series offers 11 displacement options from 36 to 400 ml/r. Continuous operating pressure is rated up to 17.5 MPa on applicable models, while intermittent pressure can reach 20 MPa. Continuous speed varies from 150 to 800 rpm, depending on displacement.
