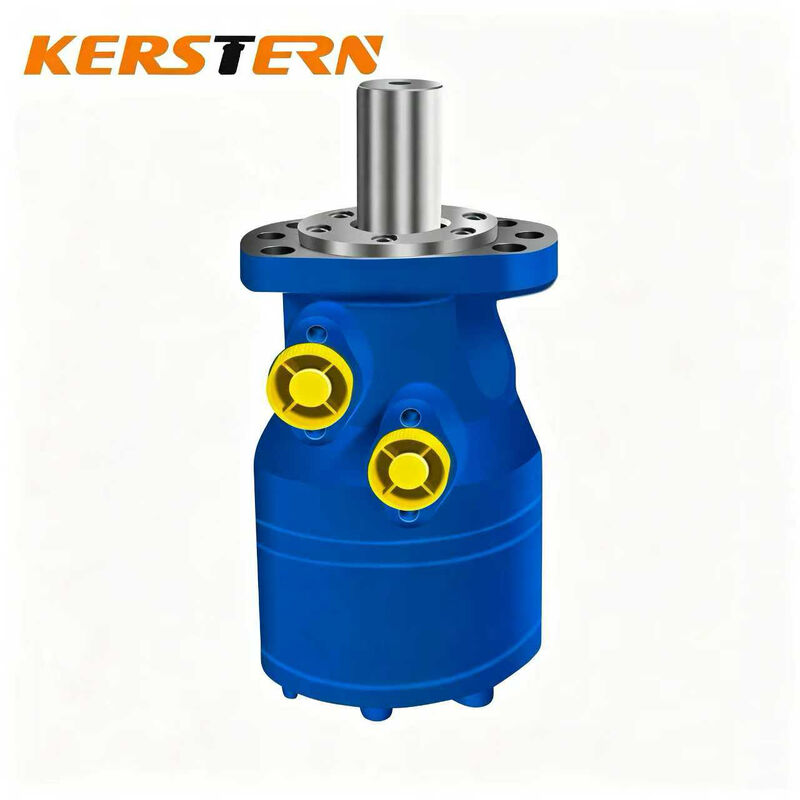

KM4 OMH Orbit High Rpm High Speed Hydraulic Motor Displacement 750cc
KM4 OMH Orbit High Rpm High Speed Hydraulic Motor Displacement 750cc

KM4 OMH Orbit High Rpm High Speed Hydraulic Motor Displacement 750cc

Product Details:
Place of Origin: CHINA
Brand Name: KERSTERN
Certification: ISO9001
Model Number: OMH, BM4, KM4 series
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: According to order quantity
Packaging Details: Carton and wooden box
Delivery Time: 7 work days
Supply Ability: 10000 pcs per month
Contact Now

Detail Information
Product Name: Hydraulic Motor/orbital Hydraulic Motor Displacement: 125-750cc
Model: OMH, KM4 Warranty: One Year
Place Of Origin: China Standard Or Non Standard: Standard
High Light:

BM4 High Speed Hydraulic Motor

,

orbit High Speed Hydraulic Motor

,

Hydraulic Motor Displacement 750cc

Product Description



KM4 OMH Orbit High Rpm High Speed Hydraulic Motor





Characteristic features:
It adapts the gerolor design, which has a higher distribution accuracy and mechanical efficiency.
The motor can be used in high pressure and high torque.
Double taper roller bearings permit high radial loads.
Credible design for shaft seal , which can bear high pressure.
A variety of connection types of flange, output shaft and oil port.



Displacement(ml/r) 195 245 310 395 490 625 800

flow

(LPM)

 cont. 75 80 80 80 80 80 80
int. 100 100 100 100 100 100 100

speed

(RPM)

 cont. 390 320 250 200 156 120 100
int. 487 390 300 240 200 150 120

pressure

(MPA)

 cont. 14 14 14 14 14 12.5 10
int. 17.5 15 15 15 15 13 12

torque

(N*M)

 cont. 400 435 554 697 870 998 1023
int. 510 502 663 798 1056 1178 1379

output power

(KW)

 cont. 9 8 8 6 13 13 13
int. 11 10 9 9 17 17 17




Note:
1. Intermittent means the entrance of maximum pressure; continuous working pressure means the differential pressure.
2. Motor should not work under the highest pressure and the maximum speed.
3. The running time should not exceed 10% under intermittent working conditions.
4. The Maximum working temperature is 80℃.
5. The maximum allowable back pressure is 10Mpa, but the recommended back pressure should not exceed 5MP, a leaking pipes is needed when exceeding.
6. One hour running time under 40% of maximum working pressure is recommended before full capacity working.
7. Recommending N68 anti-wear hydraulic oil, viscosity 37-73cSt, cleanliness ISO 18/13.











Applications:  Excavator grab, engineering machine, industry machine






packing:


KM4 OMH Orbit High Rpm High Speed Hydraulic Motor Displacement 750cc 0
transportation:
design and construction Danfoss Orbital Motor final inspection 1

FAQ:

1. who are we?
We are based in Jining, China, start from 2003.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Hydraulic motor
4. How long is the Warranty?
One-year warranty.
5. What is your payment terms?
Re: 100% in advance, long-term dealer 30% in advance, 70% beofre shipping.
6. How about the delivery time?
Normal Models within 2 days, unusual models and bulk order within 5-10 days.
