Detail Information
Brand:	KERSTERN	Material:	Cast Iron
Pressure:	350bar	Speed:	120-500
Displacement:	250	Condition:	New
Motor Shafts:	Straight, Splined And Tapered	Place Of Origin:	China
Certification:	ISO9001	Motor Power:	Hydraulic Oil
Structural Style:	Orbital	Processing:	Forging & Cutting
Application:	Construction Machine And Agricultural Machine	Flange:	Square And Rhombus Flange
Package:	Standard Package	Color:	As Your Requests
High Light:	BM3 High Speed Hydraulic Motor , Eaton High Speed Hydraulic Motor , high flow hydraulic motor 30MM

Product Description

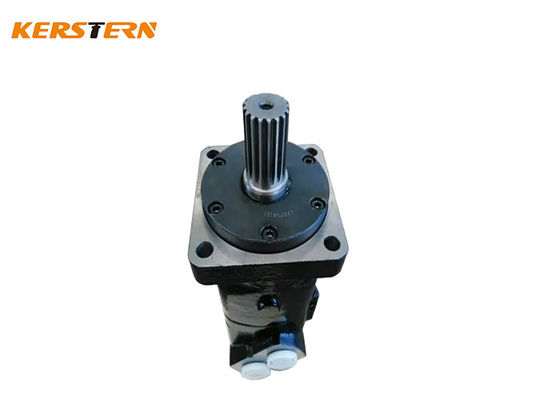

Danfoss / Eaton Replacement Hydraulic Wheel Motor BM3 With Straight Φ25 / Φ30 Flat 8

High Efficiency Hydraulic Orbit Motor BM3 with Straight Φ25 / Φ30 flat 8

Descrition:

Compact in design with spool valving and Geroler
Imported high pressure capacity shaft seal
Wide variety of mounting flanges, shafts, ports
and speed provides design flexibility

Direction of shaft rotation and speed can be controlled easily and smoothly
Best combination of efficiency and economy in medium duty applications

Applications: Hydraulic system, engineering machine, industry machine

Specifications:

Displacement (ml/r)		100	125	160	200	245	305	395
Flow (LPM)	Rated	50	50	50	50	50	50	50
Flow (LPM)	Max	60	60	60	60	60	60	60
Speed (RPM)	Rated	400	370	250	200	175	160	120
Speed (RPM)	Max	500	420	315	250	225	200	140
Pressure (Mpa)	Rated	124	124	115	110	110	90	90
Pressure (Mpa)	Max	138	130	124	124	120	120	110
Torque (N*m)	Rated	175	230	271	328	384	480	500
Torque (N*m)	Max	197	340	39	355	410	509	628
Weight KG		9.8	10.1	10.4	11	11.6	12.1	13.9

Standared direction of rotation:CW-When A port Pressurized(Viewed from the shaft end)
Displacement cc/r	100	125	160	200	245	305	395
H mm	188	193	200	206	215	226	243

Flange and Pllot	Shaft	Port	Displacement cc/r
Flange and Pllot	Shaft	Port	100	125	160	200	245	306	395
4 Bolt Flange 4-Φ13 hole Pilot Φ100	Straight Φ25 flat 8	2-M22X1.5 NO Case Drain	171m1113	1112	1114	1115	1116	1117	1119
	Straight Φ30 flat 8		171m1123		1124	1125	1126	1127	1129
	60-30X26X8		171m1133	1132	1134	1135	1136	1137	1139
	60-30X26X6		171m1143		1144	1145	1146	1147	1149
	Straight Φ25 flat 8		171m1153	1152	1154	1155	1156	1157	1159
	60-30X26X6	2-M22X1.5 NO Case Drain	171m1203		1204	1205	1206	1207	1209
	Straight Φ30 flat 8	2-M22X1.5 Case Drain M14X1.5	171m1163		1164	1165	1166	1167	1169
	60-30X26X8		171m1173	1172	1174	1175	1176	1177	1179
	60-30X26X6		171m1183		1184	1185	1186	1187	1189
4-Φ11 long flange Pilot Φ85	60-25X22X6	2-M22X1.5 NO Case Drain	171m1193		1194	1195	1196	1197	1199
4-Φ11 long flange Pilot Φ85	Straight Φ25 flat 8	2-M22X1.5 NO Case Drain	171m1213	1212	1214	1215	1216	1217	1219

Competitive Advantage: Good quality, Complete Series, Competitive price and Best service.

Packing:
design and construction Danfoss Orbital Motor final inspection 0

Transportation:

FAQ:

1. who are we?
We are based in Jinan, China, start from 2003.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Hydraulic motor
4. How long is the Warranty?
One-year warranty.
5. What is your payment terms?
Re: 100% in advance, long-term dealer 30% in advance, 70% beofre shipping.
6. How about the delivery time?
Normal Models within 2 days, unusual models and bulk order within 5-10 days.

Tag:

Product Details:
Place of Origin:	China
Brand Name:	KERSTERN
Certification:	ISO9000
Model Number:	KM3-250
Payment & Shipping Terms:
Minimum Order Quantity:	1 PC
Price:	USD 1
Packaging Details:	Carton or wooden box
Delivery Time:	Ten days after you confirm the order
Payment Terms:	T/T or L/C
Supply Ability:	1000 pcs per month
